Features:

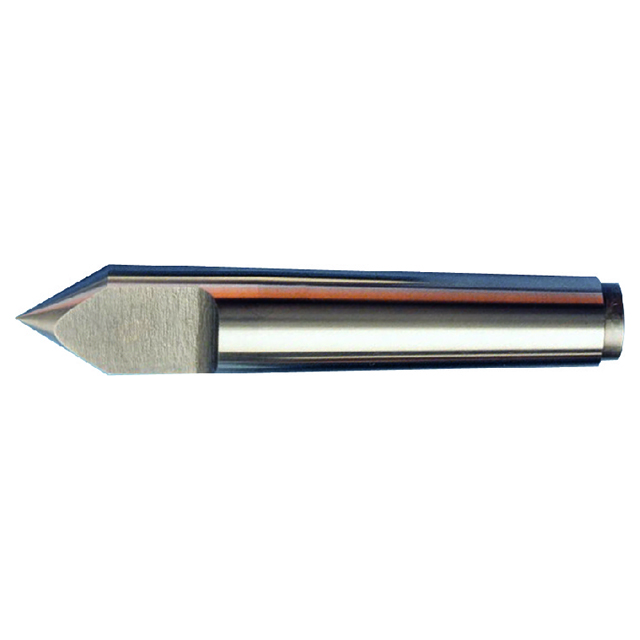

- Steel Half Center
Product Specifications
# MFG | 72102 |
Taper | 10 Jarno |
Accuracy | ± 0.00005 |
Overall Length (Inch) | 7.500" |
Point Length (Inch) | 1.250" |
Center Style | Half Steel Center |
Taper Length (Inch) | 5.000" |
D (Inch) | 1.000" |
Height Above Center Line (Inch) | 0.250" |
Length of Cut Out (Inch) | 2.000" |
Series | Standard Length Dead Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Overall Length (Inch):
1"
Overall Length (Decimal Inch):
7.5000"
Overall Length (mm):
190.50mm
Diameter (Inch):
1-1/4"
Diameter (Decimal Inch):
1.2500"
Diameter (mm):
31.75mm
