Features:

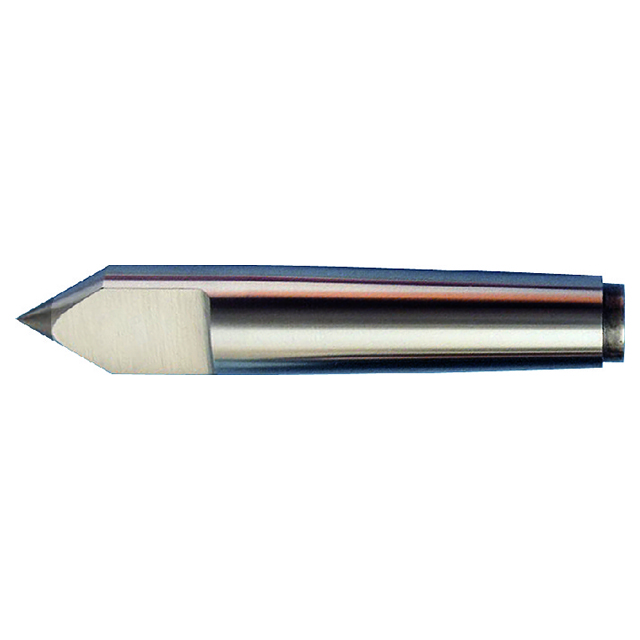

- Carbide Tipped Half Center
Product Specifications
| # MFG | 74184 |
| Taper | 18 Brown & Sharpe |
| Accuracy | ± 0.00005 |
| Overall Length (Inch) | 15.000" |
| Point Diameter (Inch) | 3.427" |
| Center Style | Half Carbide Center |
| Taper Length (Inch) | 10.250" |
| D (Inch) | 3.000" |
| Carbide Tip Diameter (Inch) | 1.250" |
| Height Above Center Line (Inch) | 0.750" |
| Length of Cut Out (Inch) | 4.500" |
| Series | Standard Length Dead Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
10.250"
Length (mm):
260.35mm
Overall Length (Inch):
15"
Overall Length (Decimal Inch):
15.0000"
Overall Length (mm):
381.00mm
Diameter (Inch):
3-27/64"
Diameter (Decimal Inch):
3.4270"
Diameter (mm):
87.05mm
