Features:
- Carbide Tipped Half Center

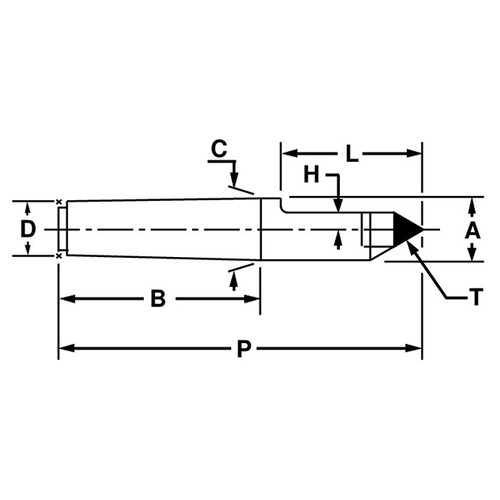

Product Specifications
| # MFG | 79124 |
| Taper | 4 Morse |
| Accuracy | ± 0.00005 |
| Overall Length (Inch) | 8.250" |
| Point Diameter (Inch) | 1.231" |
| Center Style | Half Carbide Center |
| Taper Length (Inch) | 4.063" |
| D (Inch) | 1.020" |
| Carbide Tip Diameter (Inch) | 0.750" |
| Height Above Center Line (Inch) | 0.125" |
| Length of Cut Out (Inch) | 3.250" |
| Series | Fast-Trak Specials |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
4.0630"
Length (mm):
103.20mm
Overall Length (Inch):
1"
Overall Length (Decimal Inch):
8.2500"
Overall Length (mm):
209.55mm
Diameter (Inch):
1-15/64"
Diameter (Decimal Inch):
1.2310"
Diameter (mm):
31.27mm
