Features:

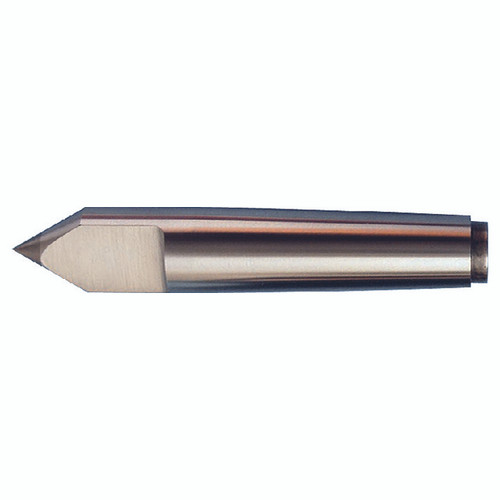

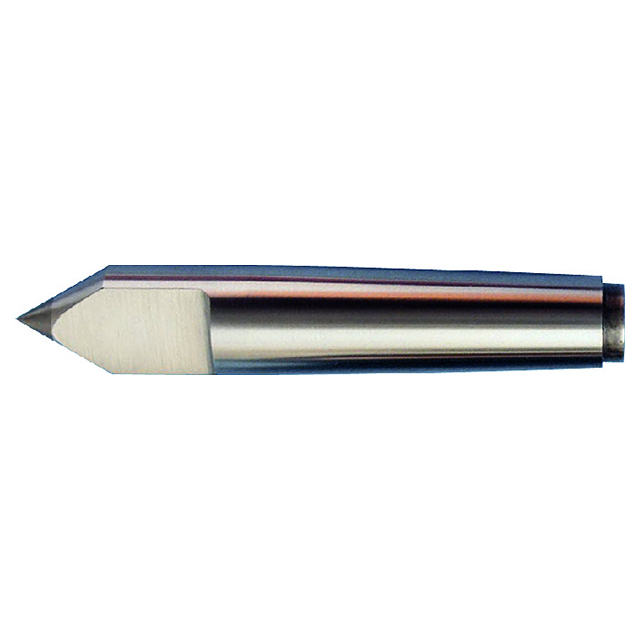

- Carbide Tipped Half Center
Product Specifications
| # MFG | 79154 |
| Taper | 5 Morse |
| Accuracy | ± 0.00005 |
| Overall Length (Inch) | 9.500" |
| Point Diameter (Inch) | 1.748" |
| Center Style | Half Carbide Center |
| Taper Length (Inch) | 5.188" |
| D (Inch) | 1.475" |
| Carbide Tip Diameter (Inch) | 1.000" |
| Height Above Center Line (Inch) | 0.125" |
| Length of Cut Out (Inch) | 3.750" |
| Series | Fast-Trak Specials |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
5.1880"
Length (mm):
131.78mm
Overall Length (Inch):
1"
Overall Length (Decimal Inch):
9.5000"
Overall Length (mm):
241.30mm
Diameter (Inch):
1-3/4"
Diameter (Decimal Inch):
1.7480"
Diameter (mm):
44.40mm
