Features:
- Carbide Tipped Half Center

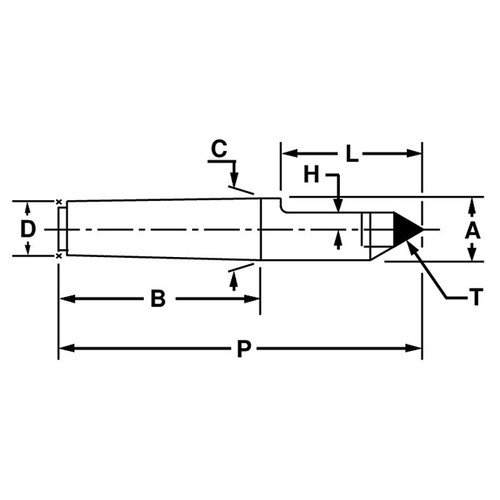

Product Specifications
| # MFG | 79284 |
| Taper | 10 Jarno |
| Accuracy | ± 0.00005 |
| Overall Length (Inch) | 9.250" |
| Point Diameter (Inch) | 1.250" |
| Center Style | Half Carbide Center |
| Taper Length (Inch) | 5.000" |
| D (Inch) | 1.000" |
| Carbide Tip Diameter (Inch) | 1.000" |
| Height Above Center Line (Inch) | 0.125" |
| Length of Cut Out (Inch) | 3.750" |
| Series | Fast-Trak Specials |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
5"
Length (Decimal Inch):
5.0000"
Length (mm):
127.00mm
Overall Length (Inch):
1"
Overall Length (Decimal Inch):
9.2500"
Overall Length (mm):
234.95mm
Diameter (Inch):
1-1/4"
Diameter (Decimal Inch):
1.2500"
Diameter (mm):
31.75mm
