Product Specifications

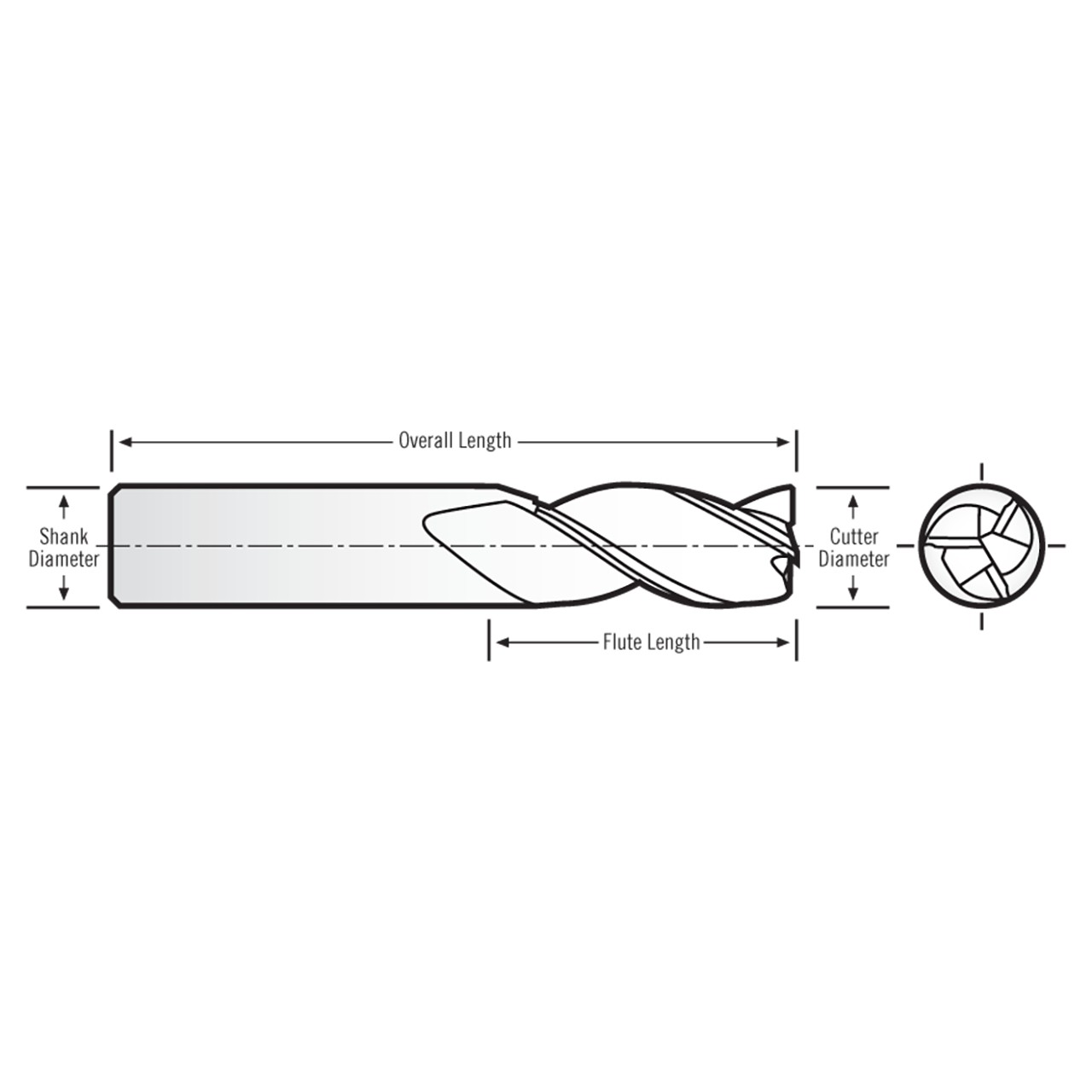

| Manufacturer Part Number | AL3-303-12-120-TC |
| Cutting Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Maximum Cutting of Diameter (Decimal Inch) | 0.374" |
| Overall Length (Decimal Inch) | 3.000" |
| Flute Length (Decimal Inch) | 1.125" |
| Corner Radius (Decimal Inch) | 0.120" |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 35 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | AL3-303 |
| Coating | Uncoated |

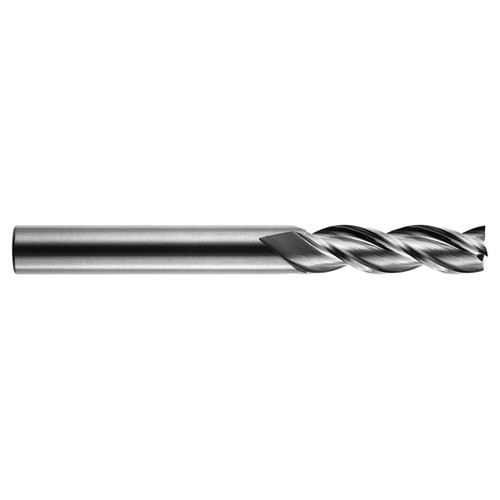

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
3
Corner Radius (Inch):
1/8"
Corner Radius (Decimal Inch):
0.1200"
Corner Radius (mm):
3.05mm
Finish/Coating:
Uncoated
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Cutting Direction:
Right Hand
