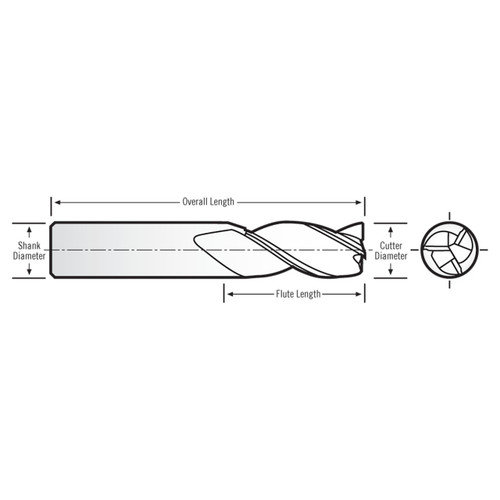

Product Specifications
| Manufacturer Part Number | AL3-303-20-BN |
| Cutting Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (Decimal Inch) | 0.625" |
| Maximum Cutting of Diameter (Decimal Inch) | 0.624" |
| Overall Length (Decimal Inch) | 4.000" |
| Flute Length (Decimal Inch) | 1.875" |
| Corner Radius (Decimal Inch) | 0.313" |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 35 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | AL3-303 |
| Coating | Uncoated |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Mill Diameter (mm):
15.88mm
Number of Flutes:
3
Corner Radius (Inch):
5/16"
Corner Radius (Decimal Inch):
0.3130"
Corner Radius (mm):
7.95mm
Finish/Coating:
Uncoated
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Cutting Direction:
Right Hand
