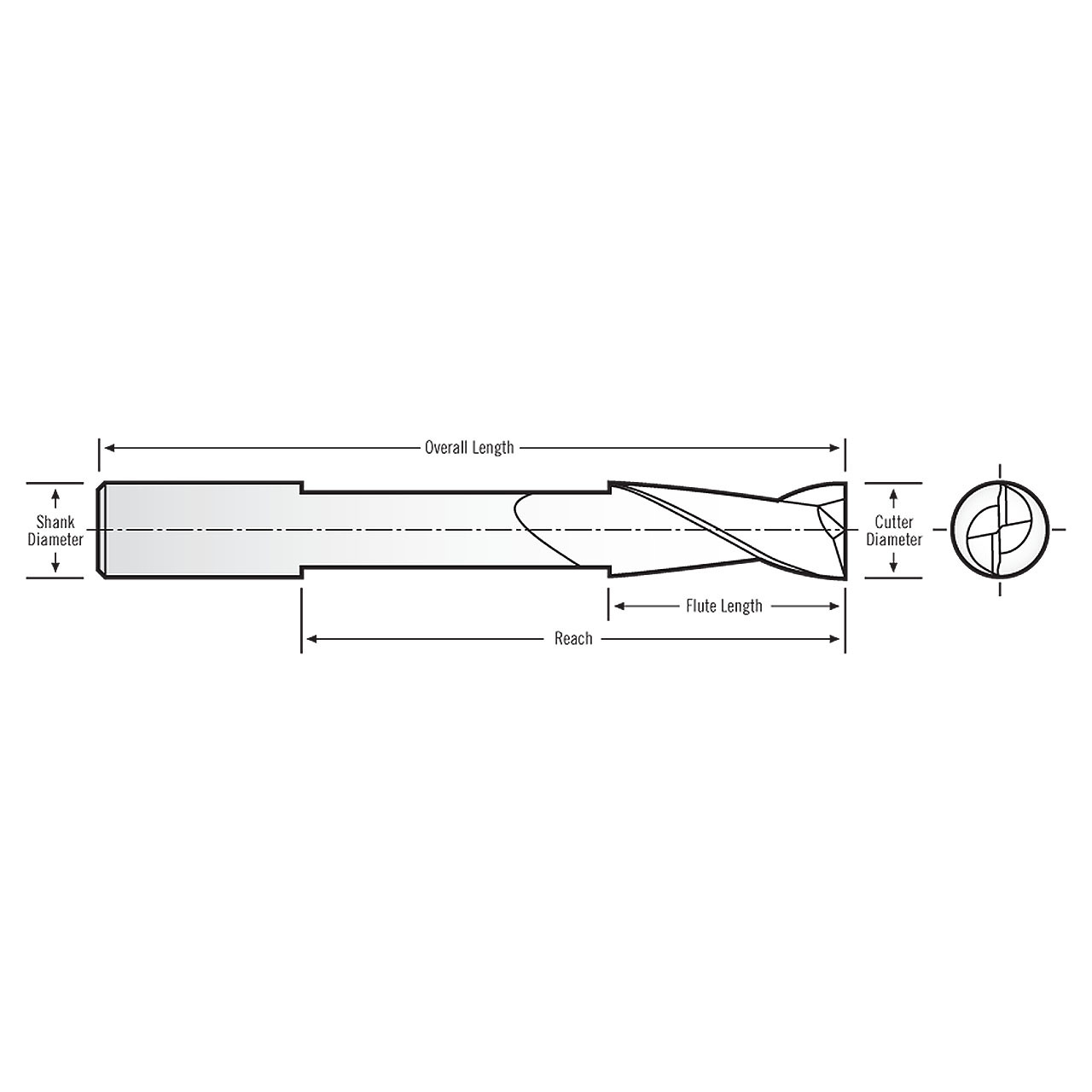

| Manufacturer Part Number | EX-206-16 |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Maximum Cutting of Diameter (Decimal Inch) | 0.501" |
| Overall Length (Decimal Inch) | 6.000" |
| Flute Length (Decimal Inch) | 1.000" |
| Reach Length (Decimal Inch) | 4.000 |
| Neck Diameter (Decimal Inch) | 0.475" |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | EX-206 |
| Coating | Uncoated |
| Product Type | Square End Mill |
