Product Specifications

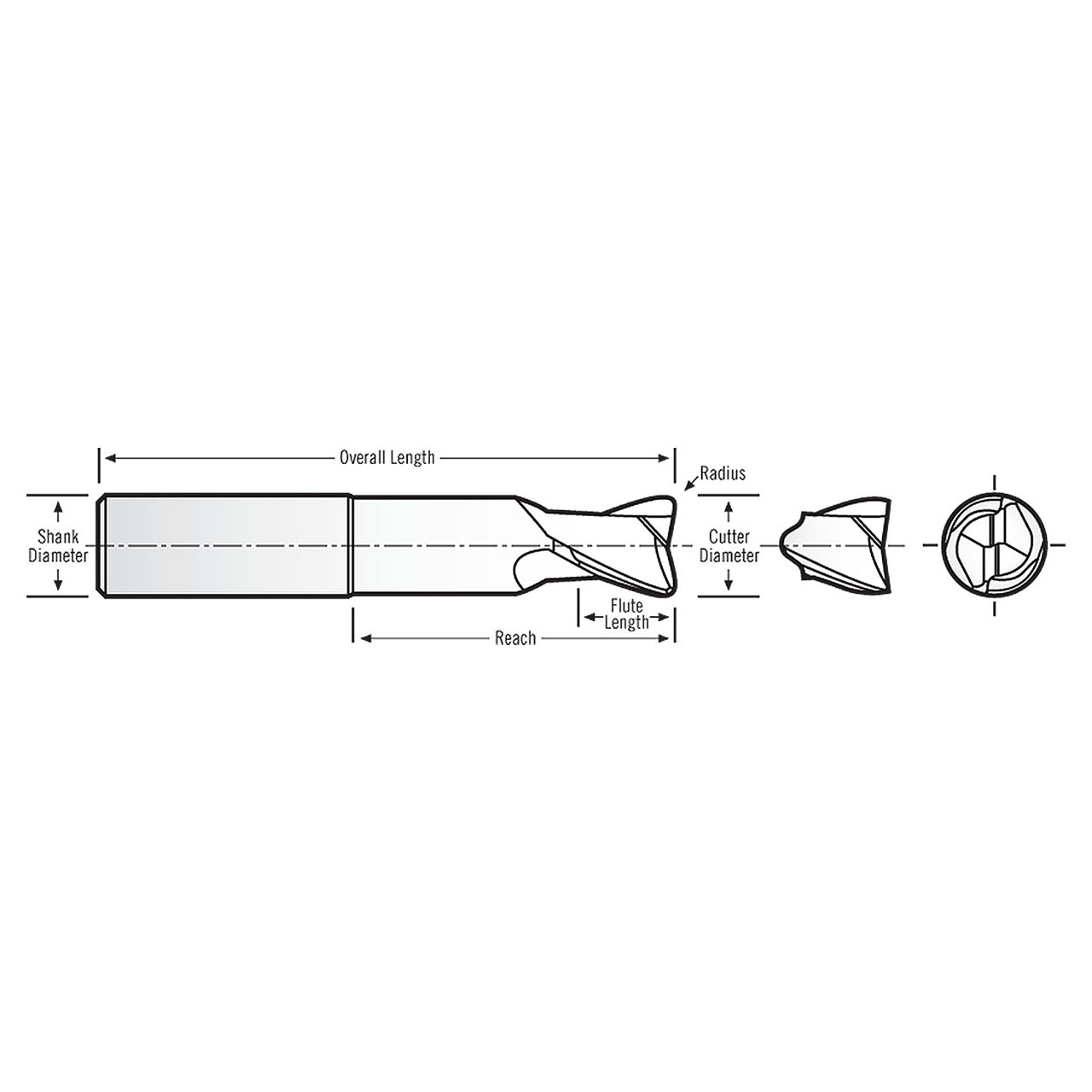

| Manufacturer Part Number | FM-204-08-030-DLC |
| Cutting Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Maximum Cutting of Diameter (Decimal Inch) | 0.249" |
| Overall Length (Decimal Inch) | 3.000" |
| Flute Length (Decimal Inch) | 0.250" |
| Reach Length (Decimal Inch) | 1.063" |
| Neck Diameter (Decimal Inch) | 0.238" |
| Corner Radius (Decimal Inch) | 0.030" |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 40 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | FM-204 |
| Coating | DLC |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
2
Finish/Coating:
DLC
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Cutting Direction:
Right Hand
