Product Specifications
| # Manufacturer Number | STR-301-12-A |
| Cutting Diameter (Inch) | 0.3750" |
| Shank Diameter (Inch) | 0.3750" |
| Maximum Cutting Diameter (Inch) | 0.3720" |
| Flute Length (Inch) | 0.6250" |
| Overall Length (Inch) | 2.5000" |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction (Hand) | Right Hand |
| Cutting Direction (Hand) | Right Hand |
| Coating | AlTiN Coated |
| Product Type | Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

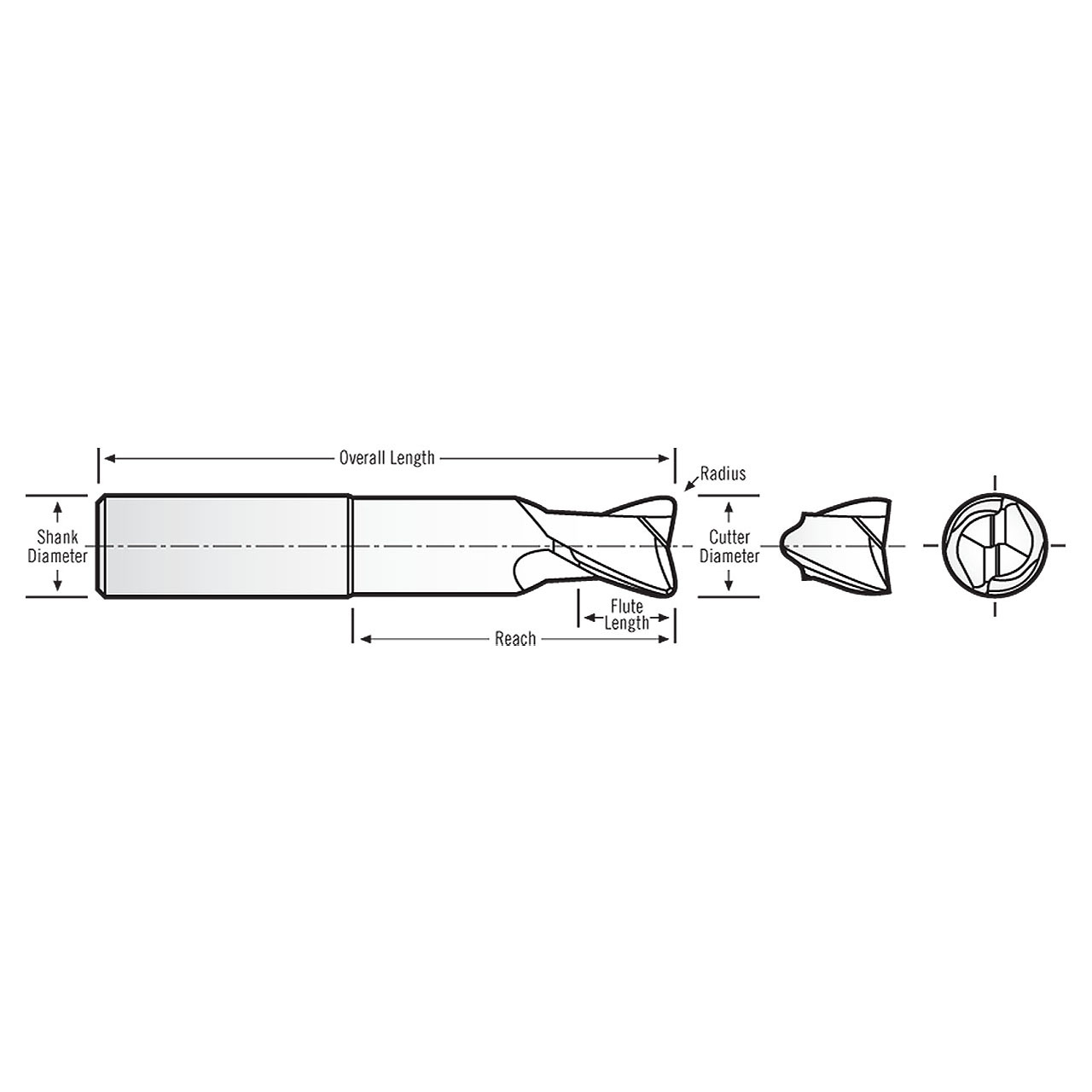

Brand:
RobbJack
Number of Flutes:
2
Overall Reach (Inch):
3-1/8"
Overall Reach (Decimal):
3.1250"
Overall Reach (mm):
79.38mm
Finish/Coating:
DLC
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Helix Angle:
40 Degree
Cutting Direction:
Right Hand
Mill Diameter (Decimal Inch):
0.6250"
