| Manufacturer Part Number | FM-305-12-BN-DLC |

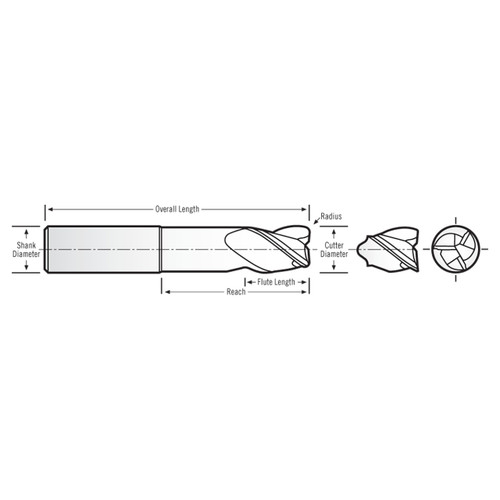

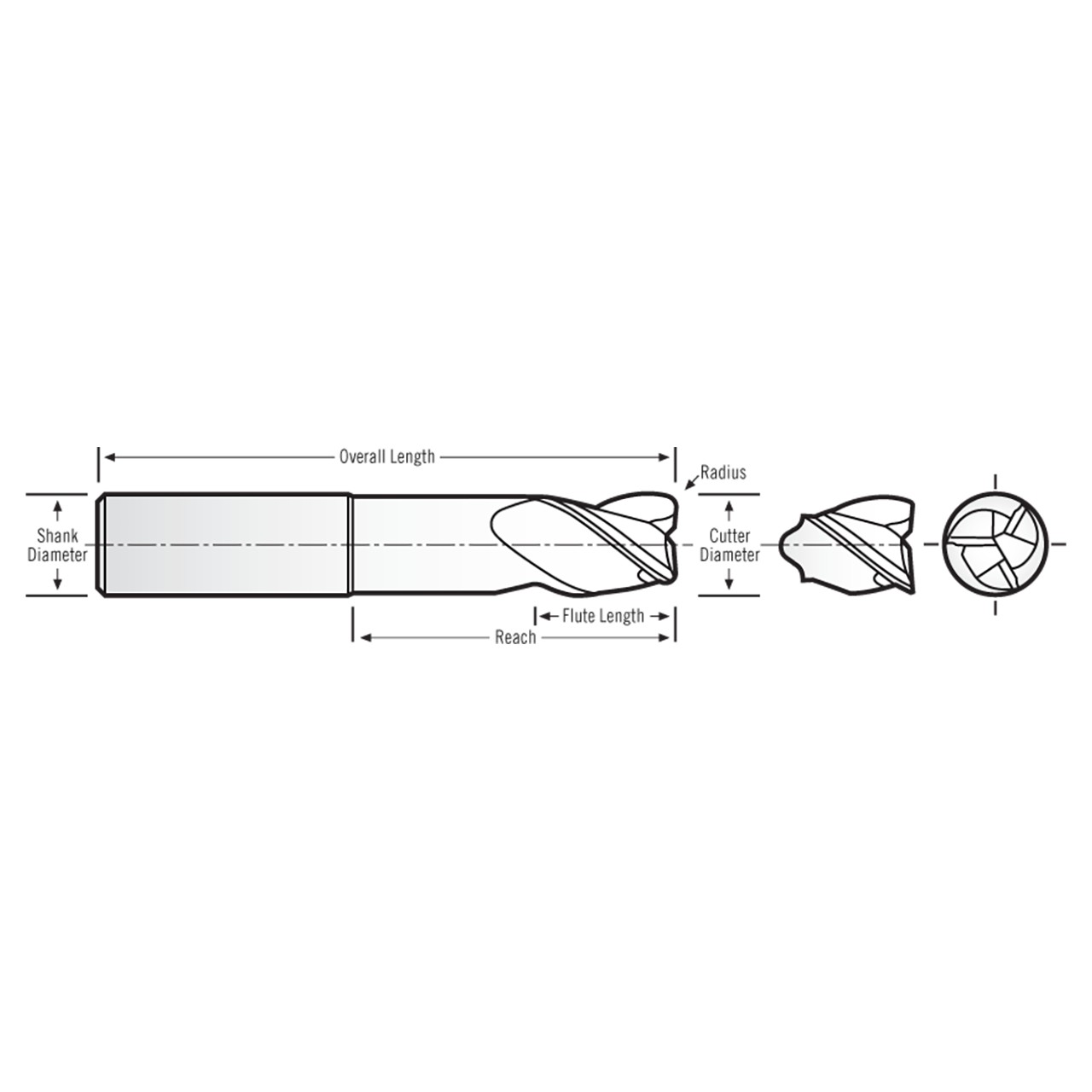

| Cutting Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Maximum Cut of Diamter (Decimal Inch) | 0.374" |
| Overall Length (Decimal Inch) | 4.000" |
| Flute Length (Decimal Inch) | 0.375" |
| Reach Length (Decimal Inch) | 2.125" |
| Neck Diameter (Decimal Inch) | 0.356" |
| Corner Radius (Decimal Inch) | 0.188" |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 40 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | FM-305 |
| Coating | DLC |
| Product Type | Square End Mill |
