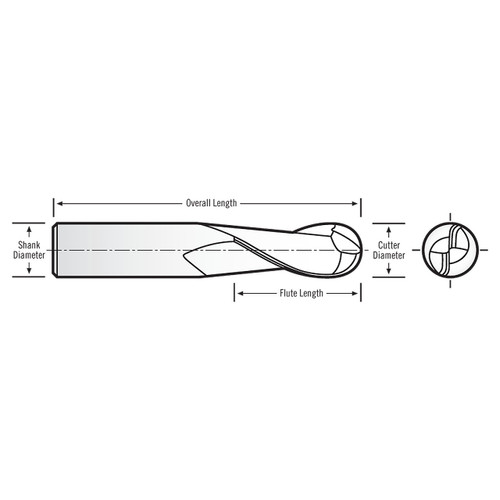

RobbJack MB-203-04 | 4.00mm Cutting Diameter x 4.00mm Shank x 50.00mm OAL 2 Flute Uncoated Ball End Mill

$34.01
Brand:
RobbJack
Number of Flutes:
2
Overall Length (Inch):
1-31/32"
Overall Length (Decimal Inch):
1.9700"
Overall Length (mm):
50.00mm
Shank Diameter (Inch):
5/32"
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
Finish/Coating:
Uncoated
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
SKU:
25204411
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
RobbJack MB-203-04 | 4.00mm Cutting Diameter x 4.00mm Shank x 50.00mm OAL 2 Flute Uncoated Ball End Mill

Product Specifications
# Manufacturer NumberMB-203-04
Cutting Diameter (mm)4.00mm
Shank Diameter (mm)4.00mm
Maximum Cutting Diameter (mm)0.16mm
Flute Length (mm)12.00mm
Overall Length (mm)50.00mm
Helix Angle (Degree)30 Degree
Helix Direction (Hand)Right Hand
Cutting Direction (Hand)Right Hand
CoatingUncoated
Product TypeBall End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
RobbJack
Number of Flutes:
2
Overall Length (Inch):
1-31/32"
Overall Length (Decimal Inch):
1.9700"
Overall Length (mm):
50.00mm
Shank Diameter (Inch):
5/32"
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
Finish/Coating:
Uncoated
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
