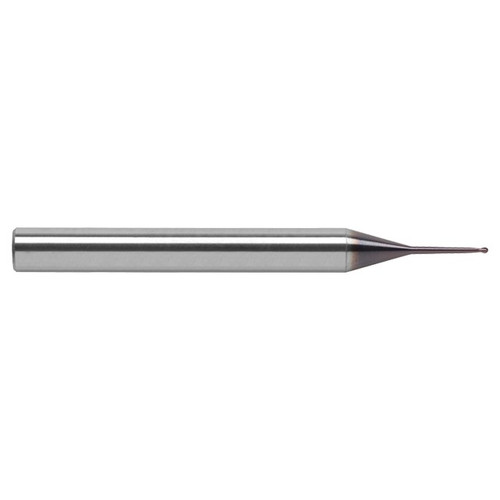

RobbJack MDM-204-01.5 | 1.50mm Diameter x 6.00mm Shank x 63.00mm OAL 2 Flute AlTiN Coated Ball End Mill

$59.58
Brand:
RobbJack
Mill Diameter (Inch):
1/16"
Mill Diameter (Decimal Inch):
0.0600"
Mill Diameter (mm):
1.50mm
Number of Flutes:
2
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4800"
Overall Length (mm):
63.00mm
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2400"
Shank Diameter (mm):
6.00mm
Finish/Coating:
AlTiN
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
SKU:
25204647
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
RobbJack MDM-204-01.5 | 1.50mm Diameter x 6.00mm Shank x 63.00mm OAL 2 Flute AlTiN Coated Ball End Mill

Product Specifications
Manufacturer Part NumberMDM-204-01.5
Cutting Diameter (Decimal Inch)1.50mm
Shank Diameter (Decimal Inch)6.00mm
Maximum Cut of Diamter (Decimal Inch)0.07mm
Overall Length (Decimal Inch)63.00mm
Flute Length (Decimal Inch)1.50mm
Reach Length (Decimal Inch)10.00mm
Neck Diameter (Decimal Inch)1.40mm
Corner Radius (Decimal Inch)0.80mm
Number of Flutes2
Helix Angle (Degree)30 Degree
Cutting DirectionRight Hand
Helix DirectionRight Hand
SeriesMDM-204
CoatingAlTiN
Product TypeBall End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
RobbJack
Mill Diameter (Inch):
1/16"
Mill Diameter (Decimal Inch):
0.0600"
Mill Diameter (mm):
1.50mm
Number of Flutes:
2
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4800"
Overall Length (mm):
63.00mm
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2400"
Shank Diameter (mm):
6.00mm
Finish/Coating:
AlTiN
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
