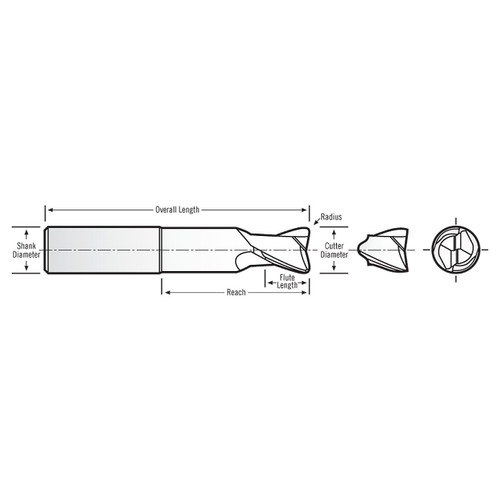

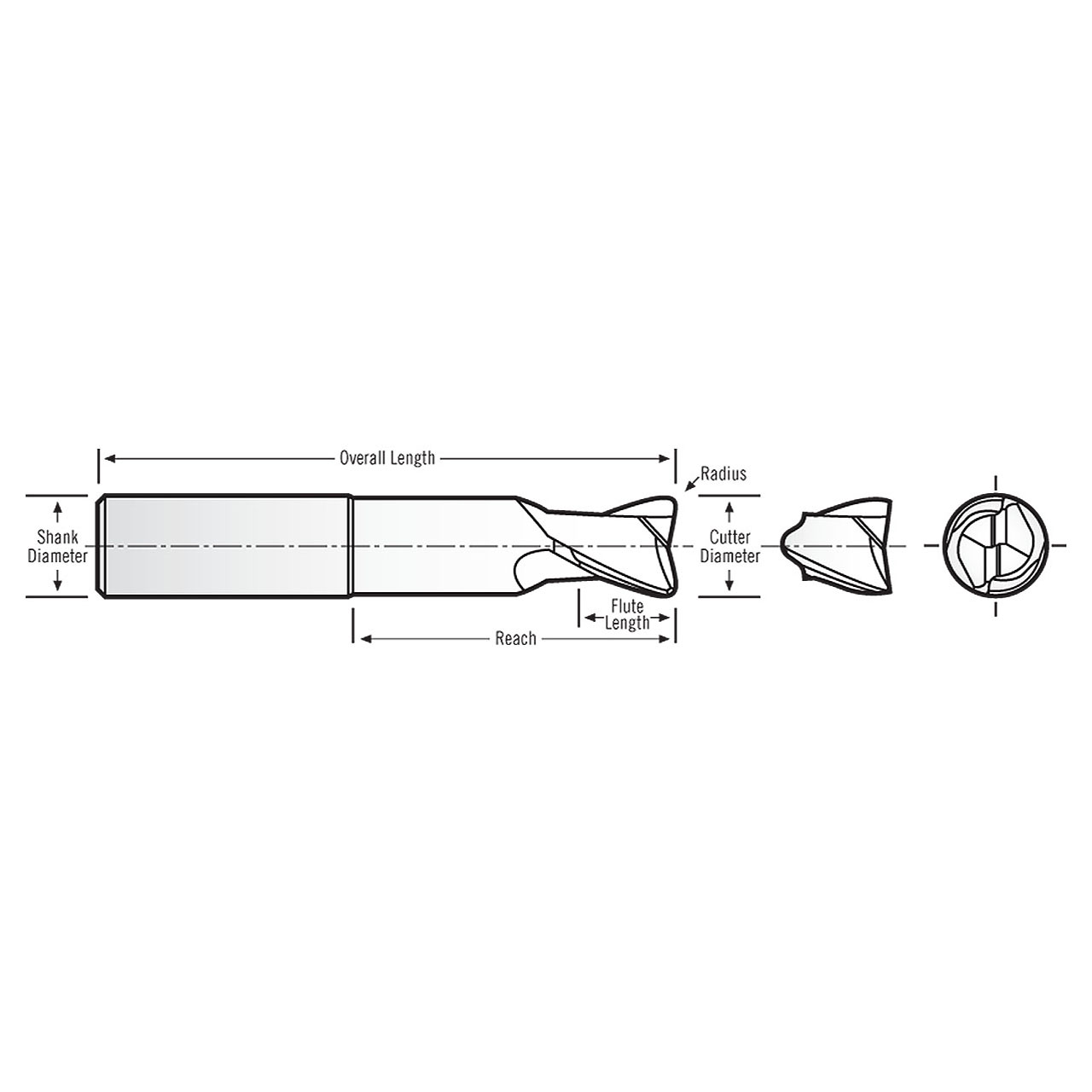

Product Specifications
| Manufacturer Part Number | MFM-203-12-150-DLC |
| Cutting Diameter (mm) | 12.00mm |
| Shank Diameter (Imm) | 12.00mm |
| Maximum Cutting of Diameter (mm) | 0.45mm |
| Overall Length (mm) | 110.00mm |
| Flute Length (mm) | 13.00mm |
| Reach Length (mm) | 48.00mm |
| Neck Diameter (mm) | 11.40mm |
| Corner Radius (mm) | 1.50mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 40 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | MFM-203 |
| Coating | DLC |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
15/32"
Mill Diameter (Decimal Inch):
0.4700"
Mill Diameter (mm):
12.00mm
Number of Flutes:
2
Finish/Coating:
DLC
Shank Diameter (Inch):
15/32"
Shank Diameter (Decimal Inch):
0.4700"
Shank Diameter (mm):
12.00mm
Overall Length (Inch):
4-21/64"
Overall Length (Decimal Inch):
4.3300"
Overall Length (mm):
110.00mm
Cutting Direction:
Right Hand
