Product Specifications

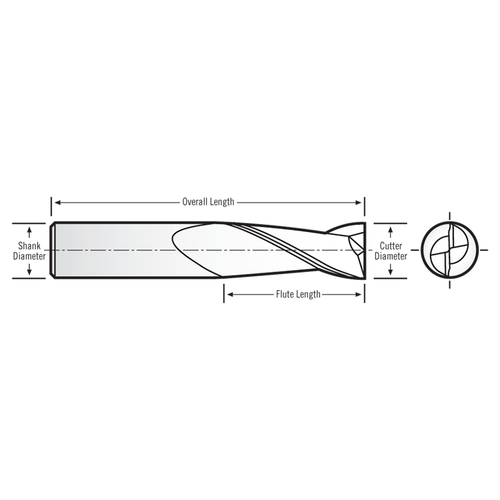

| # Manufacturer Number | MS1-201-12-DLC |
| Cutting Diameter (mm) | 12.00mm |
| Shank Diameter (mm) | 12.00mm |
| Maximum Cutting Diameter (mm) | 0.47mm |
| Flute Length (mm) | 16.00mm |
| Overall Length (mm) | 73.00mm |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction (Hand) | Right Hand |
| Cutting Direction (Hand) | Right Hand |
| Coating | DLC Coated |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Number of Flutes:
2
Finish/Coating:
DLC
Shank Diameter (Inch):
15/32"
Shank Diameter (Decimal Inch):
0.4700"
Shank Diameter (mm):
12.00mm
Overall Length (Inch):
2-7/8"
Overall Length (Decimal Inch):
2.8700"
Overall Length (mm):
73.00mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
Mill Diameter (Inch):
15/32"
Mill Diameter (Decimal Inch):
0.4700"
Mill Diameter (mm):
12.00mm
