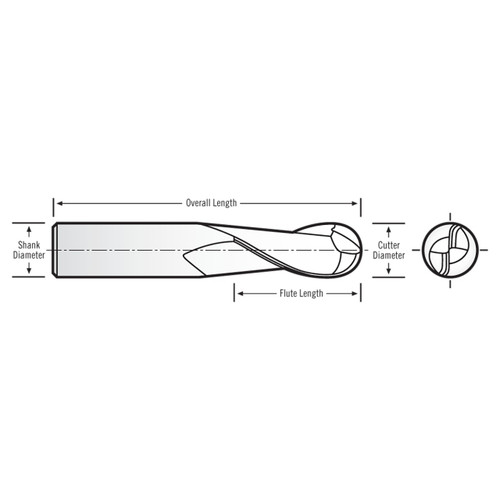

Product Specifications
Manufacturer Part Number | MSB-201-02-A |
Cutting Diameter (mm) | 2.00mm |
Shank Diameter (mm) | 3.00mm |
Maximum Cutting of Diameter (mm) | 0.08mm |
Overall Length (mm) | 38.00mm |
Flute Length (mm) | 5.00mm |
Corner Radius (mm) | 1.00mm |
Number of Flutes | 2 |
Helix Angle (Degree) | 30 Degree |
Cutting Direction | Right Hand |
Helix Direction | Right Hand |
Series | MSB-201 |
Coating | AlTiN |
Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
5/64"
Mill Diameter (Decimal Inch):
0.0800"
Mill Diameter (mm):
2.00mm
Number of Flutes:
2
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.00mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1200"
Shank Diameter (mm):
3.00mm
Finish/Coating:
AlTiN
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
