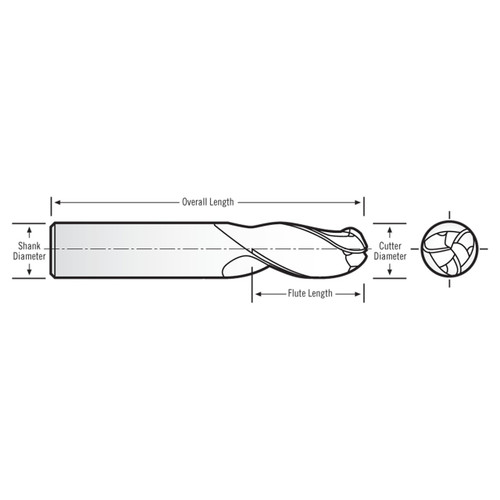

RobbJack MSB-301-10-T | 10.00mm Diameter x 10.00mm Shank x 66.00mm OAL 3 Flute TiN Coated Ball End Mill

$68.60
Brand:
RobbJack
Mill Diameter (Inch):
25/64"
Mill Diameter (Decimal Inch):
0.3900"
Mill Diameter (mm):
10.00mm
Number of Flutes:
3
Overall Length (Inch):
2-19/32"
Overall Length (Decimal Inch):
2.6000"
Overall Length (mm):
66.00mm
Shank Diameter (Inch):
25/64"
Shank Diameter (Decimal Inch):
0.3900"
Shank Diameter (mm):
10.00mm
Finish/Coating:
TiN
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
SKU:
25205411
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
RobbJack MSB-301-10-T | 10.00mm Diameter x 10.00mm Shank x 66.00mm OAL 3 Flute TiN Coated Ball End Mill

Product Specifications
Manufacturer Part NumberMSB-301-10-T
Cutting Diameter (mm)10.00mm
Shank Diameter (mm)10.00mm
Maximum Cutting of Diameter (mm)0.39mm
Overall Length (mm)66.00mm
Flute Length (mm)14.00mm
Corner Radius (mm)5.00mm
Number of Flutes3
Helix Angle (Degree)30 Degree
Cutting DirectionRight Hand
Helix DirectionRight Hand
SeriesMSB-301
CoatingTiN
Product TypeBall End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
RobbJack
Mill Diameter (Inch):
25/64"
Mill Diameter (Decimal Inch):
0.3900"
Mill Diameter (mm):
10.00mm
Number of Flutes:
3
Overall Length (Inch):
2-19/32"
Overall Length (Decimal Inch):
2.6000"
Overall Length (mm):
66.00mm
Shank Diameter (Inch):
25/64"
Shank Diameter (Decimal Inch):
0.3900"
Shank Diameter (mm):
10.00mm
Finish/Coating:
TiN
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
