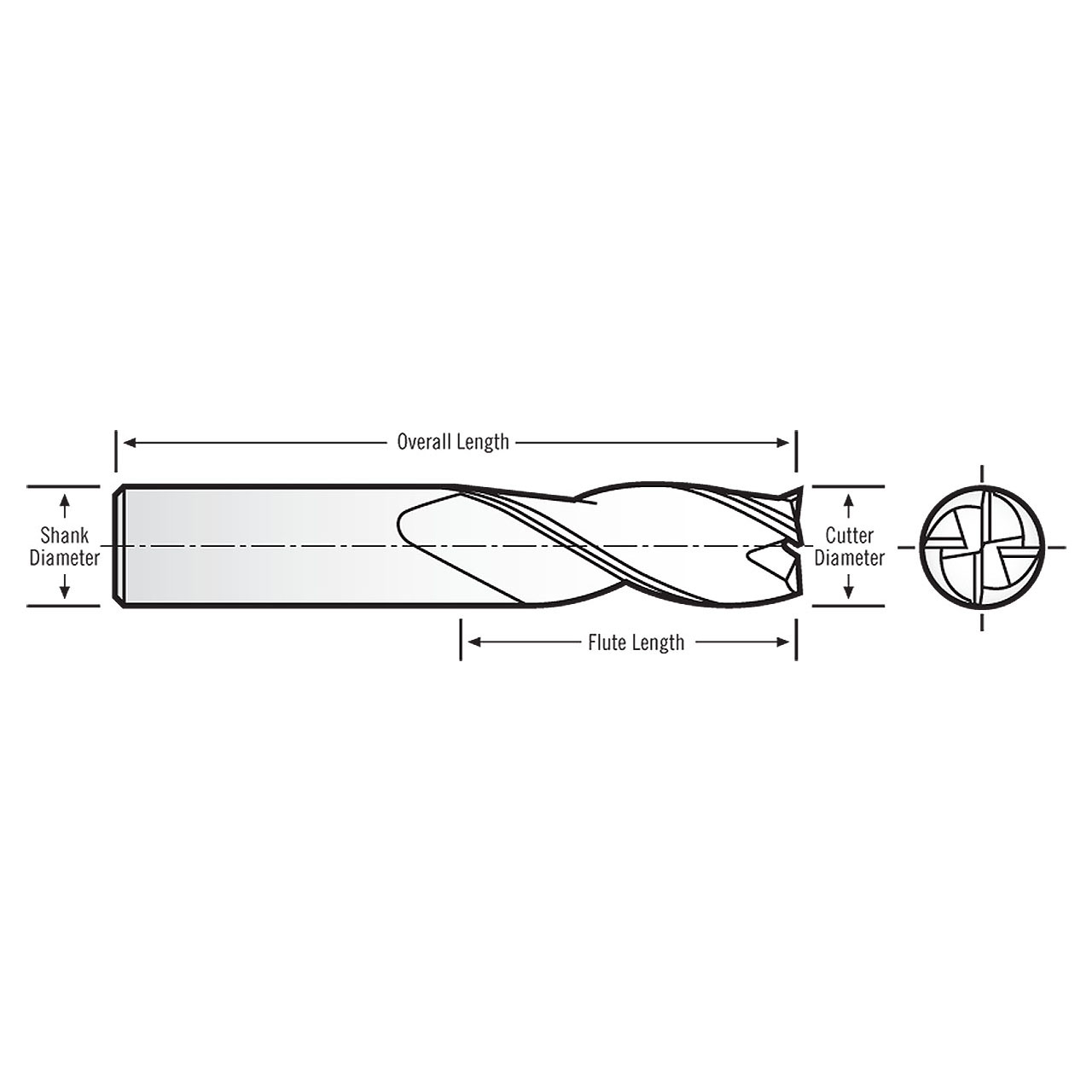

Product Specifications
| # Manufacturer Number | MST-434-05 |
| Cutting Diameter (mm) | 5.00mm |
| Shank Diameter (mm) | 5.00mm |
| Maximum Cutting Diameter (mm) | 0.22mm |
| Flute Length (mm) | 14.00mm |
| Overall Length (mm) | 50.00mm |
| Corner Chamfer (mm) | 0.10mm |
| Corner Chamfer (Degree) | 45 Degree |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction (Hand) | Right Hand |
| Cutting Direction (Hand) | Right Hand |
| Coating | Uncoated |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Number of Flutes:
4
Finish/Coating:
Uncoated
Shank Diameter (Inch):
13/64"
Shank Diameter (Decimal Inch):
0.1968"
Shank Diameter (mm):
5.00mm
Overall Length (Inch):
1-31/32"
Overall Length (Decimal Inch):
1.9700"
Overall Length (mm):
50.00mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
Mill Diameter (Inch):
13/64"
Mill Diameter (Decimal Inch):
0.1968"
Mill Diameter (mm):
5.00mm
