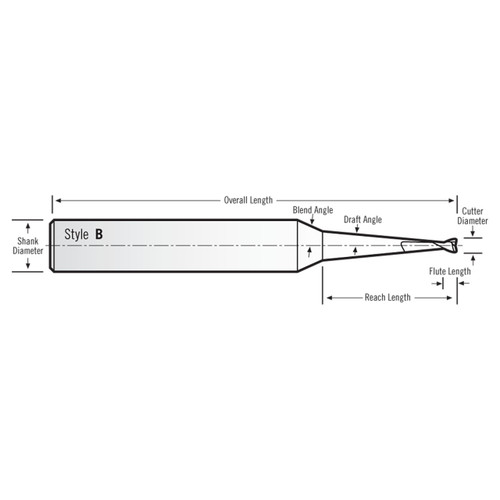

| Manufacturer Part Number | MTM-205-03 |
| Cutting Diameter (Decimal Inch) | 3.00mm |
| Shank Diameter (Decimal Inch) | 6.00mm |
| Maximum Cut of Diamter (Decimal Inch) | 0.12mm |
| Overall Length (Decimal Inch) | 75.00mm |
| Flute Length (Decimal Inch) | 3.00mm |
| Reach Length (Decimal Inch) | 45.00mm |
| Neck Diameter (Decimal Inch) | 2.80mm |
| Corner Radius (Decimal Inch) | 0.50mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | MTM-205 |
| Coating | AlTiN |
| Product Type | Square End Mill |
