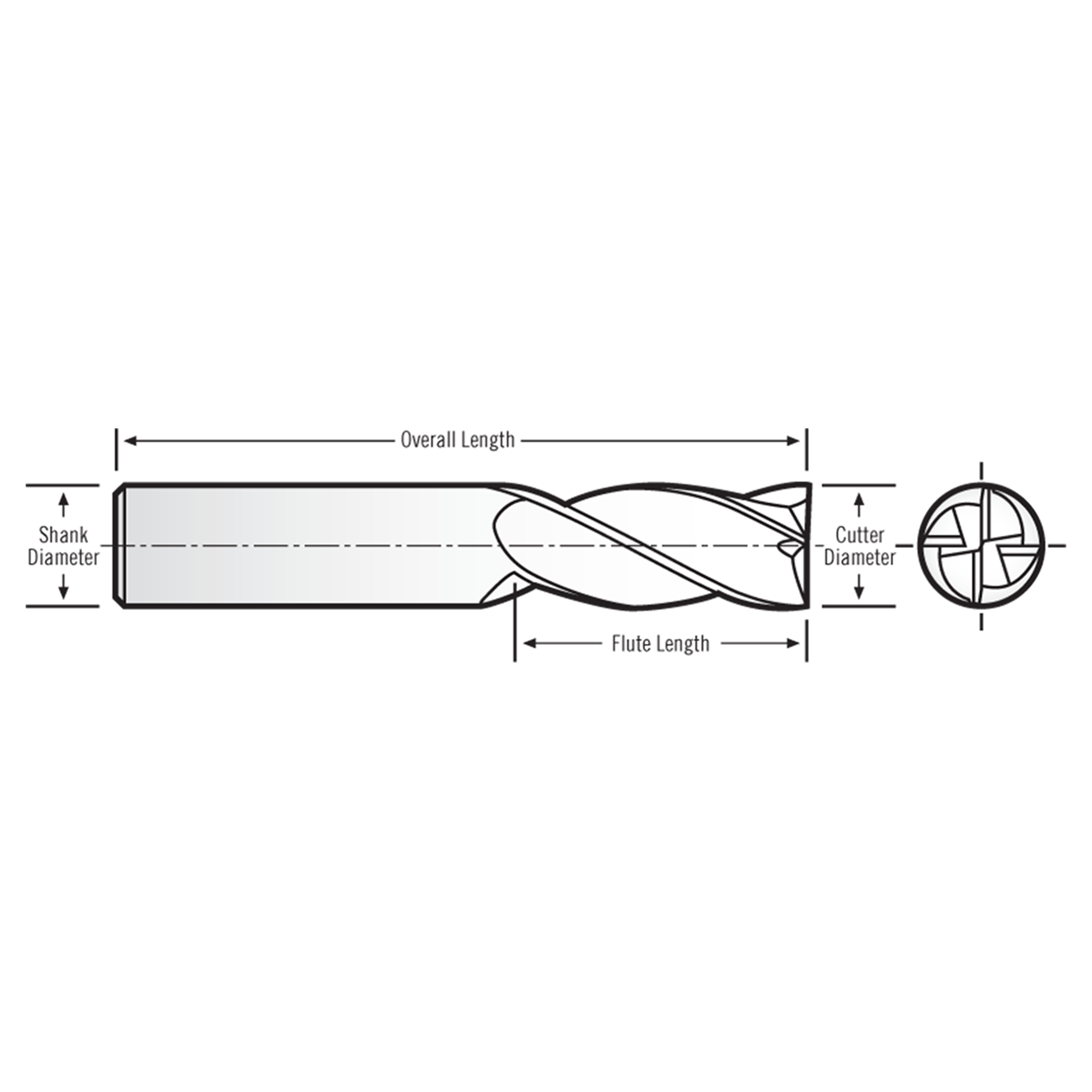

RobbJack NS-403-08-FL | 0.250" Diameter x 0.250" Shank x 2.500" OAL 4 Flute AlTiN Coated Square End Mill

$64.88
Brand:
RobbJack
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
4
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
Right Hand
SKU:
25206335
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
RobbJack NS-403-08-FL | 0.250" Diameter x 0.250" Shank x 2.500" OAL 4 Flute AlTiN Coated Square End Mill

Product Specifications
Manufacturer Part NumberNS-403-08-FL
Cutting Diameter (Decimal Inch)0.250"
Shank Diameter (Decimal Inch)0.250"
Maximum Cutting of Diameter (Decimal Inch)0.251"
Overall Length (Decimal Inch)2.500"
Flute Length (Decimal Inch)1.000"
Corner Chamfer (Decimal Inch)0.008"
Number of Flutes4
Chamfer Angle (Degree)45 Degree
Cutting DirectionRight Hand
Helix DirectionRight Hand
SeriesNS-403
CoatingAlTiN
Product TypeSquare End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
RobbJack
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
4
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
Right Hand
