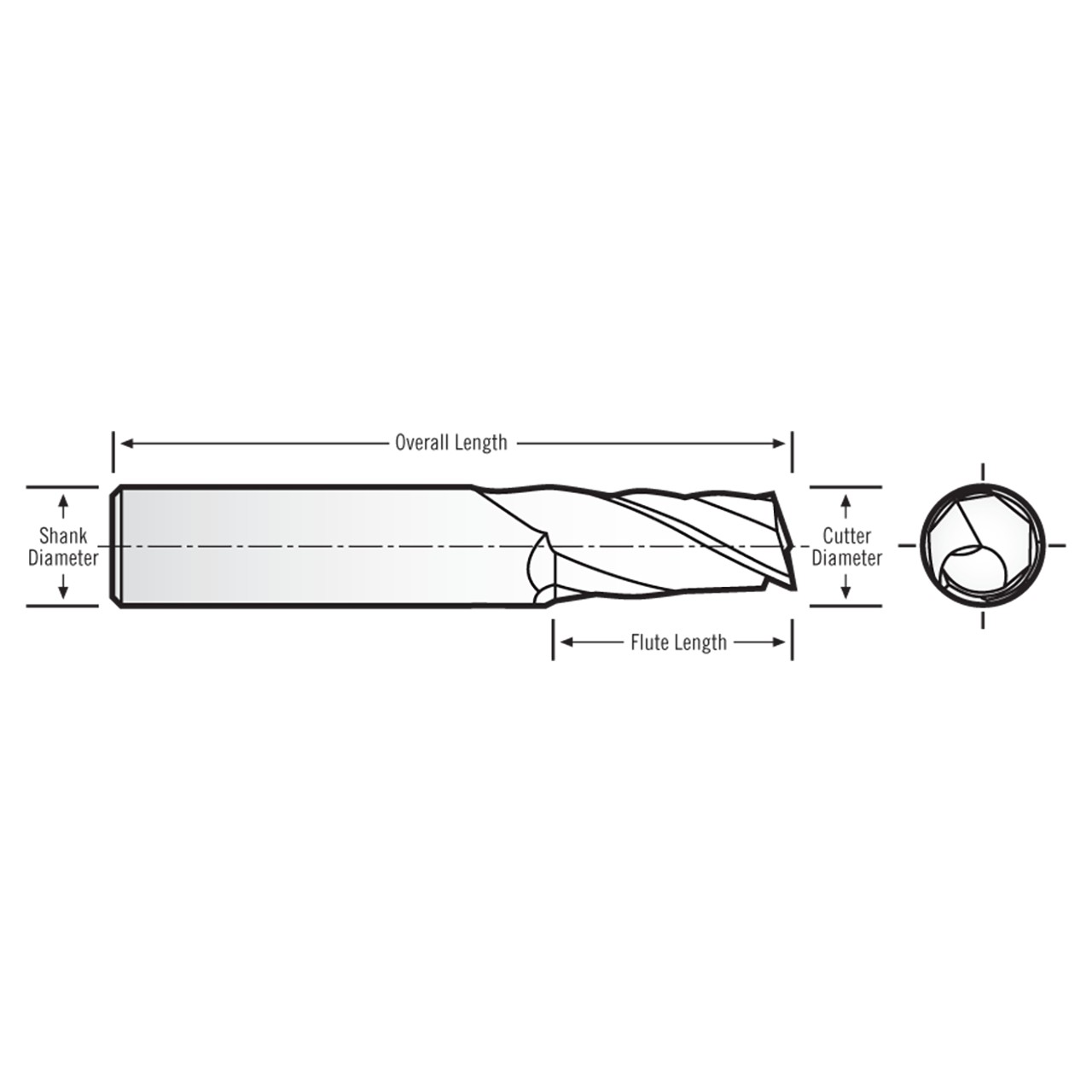

Product Specifications
| Manufacturer Part Number | PMD-108-08 |
| Cutting Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Maximum Cutting of Diameter (Decimal Inch) | 0.250" |
| Overall Length (Decimal Inch) | 2.000" |
| Flute Length (Decimal Inch) | 0.750" |
| Number of Flutes | 1 |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Left Hand |
| Series | PMD |
| Coating | Uncoated |
| Product Type | Spiral Router Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Cutting Diameter (Inch):
1/4"
Cutting Diameter (Decimal Inch):
0.2500"
Cutting Diameter (mm):
6.35mm
Number of Flutes:
1
Cutting Direction:
Right Hand
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
interval quantity:
1
