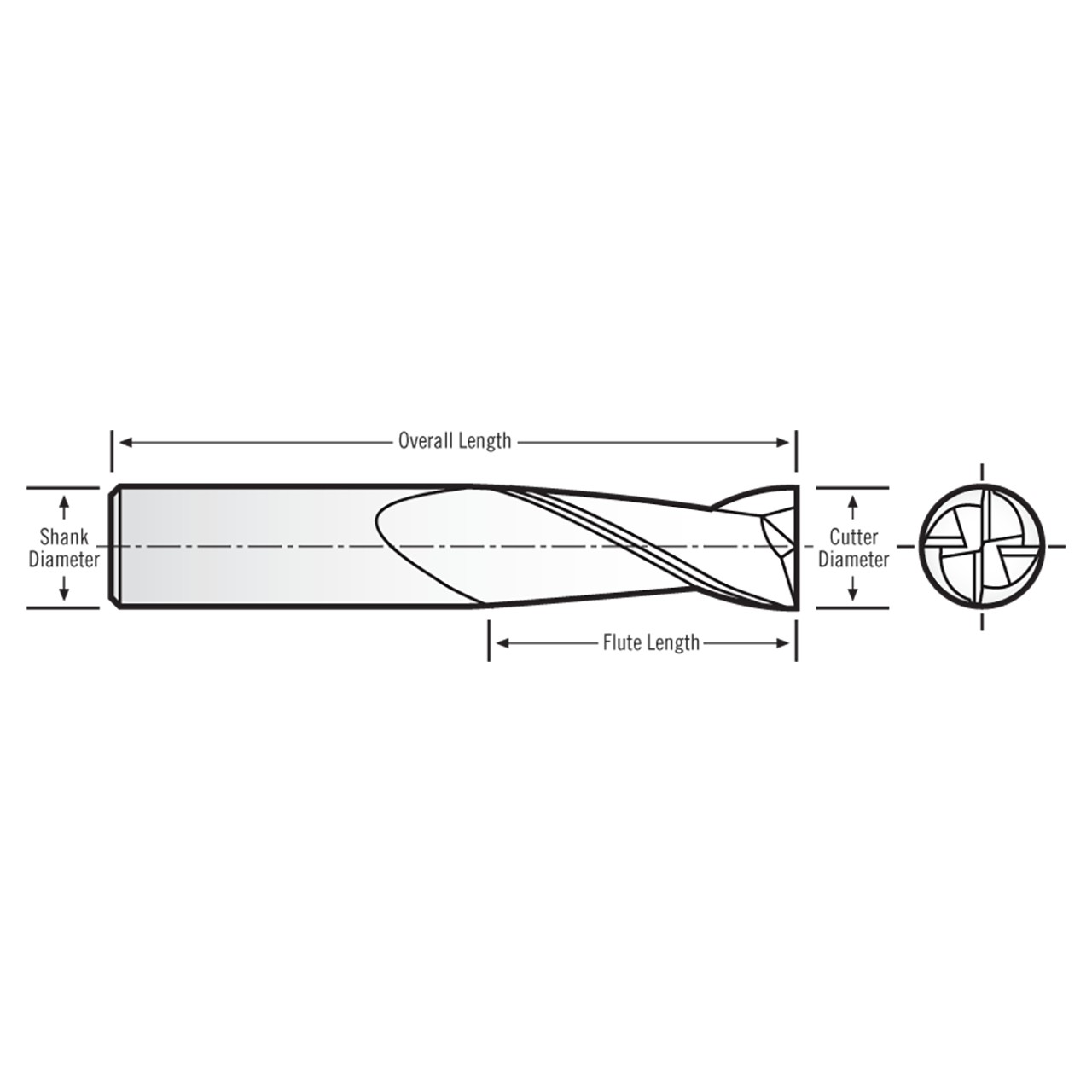

Product Specifications
Manufacturer Part Number | S1-401-04 |
Cutting Diameter (Decimal Inch) | 0.125" |
Shank Diameter (Decimal Inch) | 0.125" |
Maximum Cutting of Diameter (Decimal Inch) | 0.125" |
Overall Length (Decimal Inch) | 1.500" |
Flute Length (Decimal Inch) | 0.250" |
Number of Flutes | 4 |
Helix Angle (Degree) | 30 Degree |
Cutting Direction | Right Hand |
Helix Direction | Right Hand |
Series | S1-401 |
Coating | Uncoated |
Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
4
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
