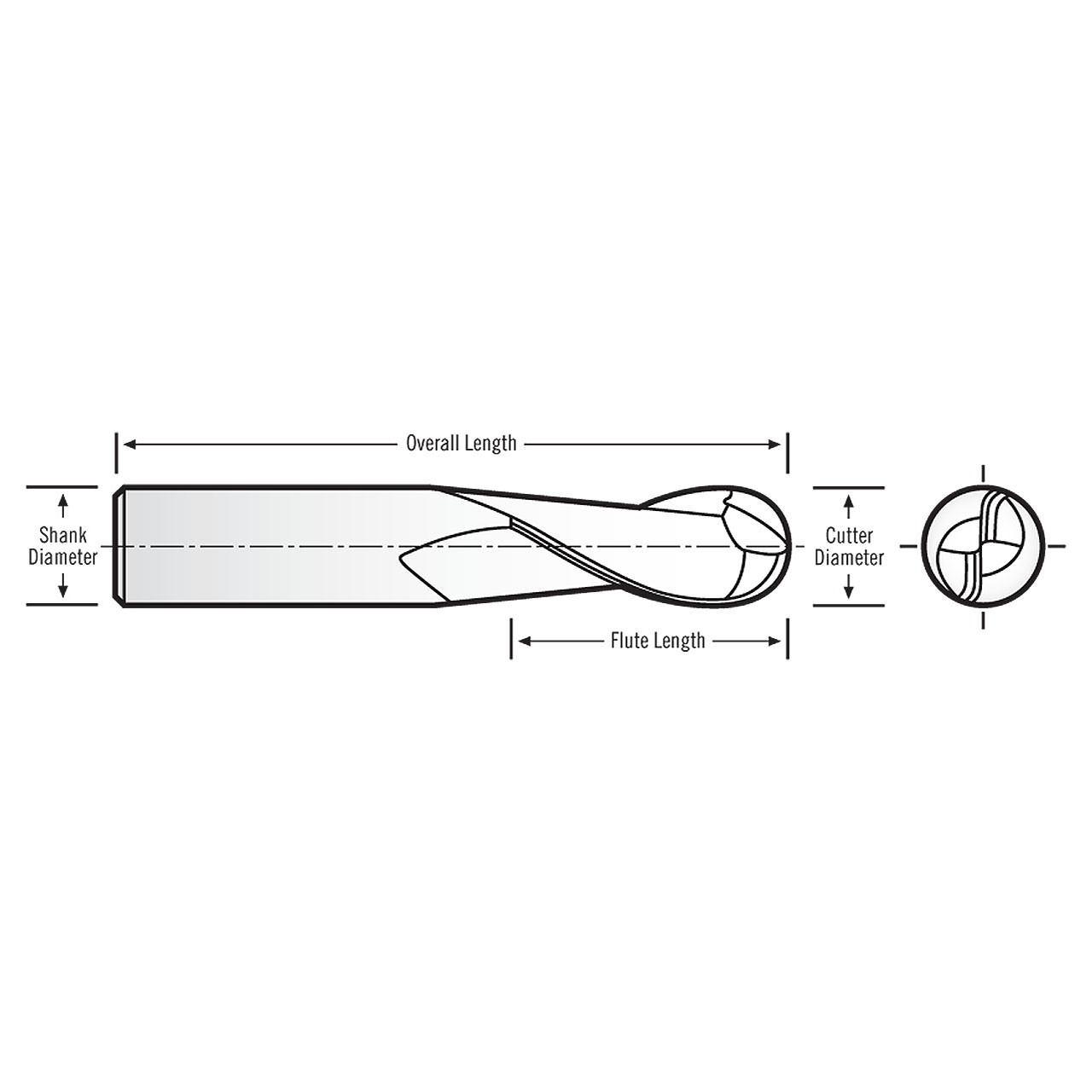

Product Specifications
Manufacturer Part Number | SB-201-12-T |
Cutting Diameter (Decimal Inch) | 0.375" |
Shank Diameter (Decimal Inch) | 0.375" |
Maximum Cutting of Diameter (Decimal Inch) | 0.375" |
Overall Length (Decimal Inch) | 2.500" |
Flute Length (Decimal Inch) | 0.500" |
Corner Radius (Decimal Inch) | 0.188" |
Number of Flutes | 2 |
Helix Angle (Degree) | 30 Degree |
Cutting Direction | Right Hand |
Helix Direction | Right Hand |
Series | SB-201 |
Coating | TiN |
Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
2
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Finish/Coating:
TiN
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
