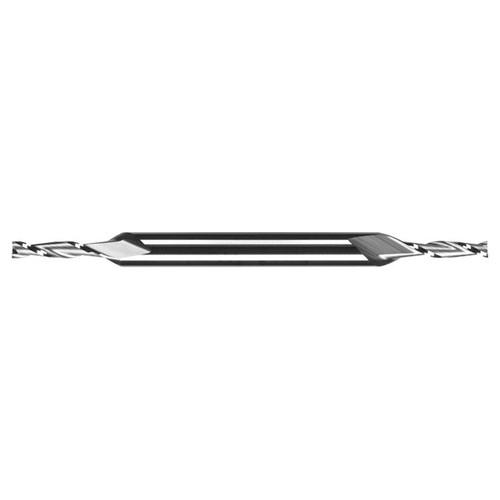

RobbJack T6-202-04.5-C | 0.1406" Diameter x 0.1875" Shank x 2.5000" OAL 2 Flute TiCN Coated Double Ended Square End Mill

$71.40 $69.97
(You save $1.43)
Brand:
RobbJack
Mill Diameter (Inch):
9/64"
Mill Diameter (Decimal Inch):
0.1406"
Mill Diameter (mm):
3.57mm
Number of Flutes:
2
Finish/Coating:
TiCN
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25208154
UPC:
Weight:
0.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
RobbJack T6-202-04.5-C | 0.1406" Diameter x 0.1875" Shank x 2.5000" OAL 2 Flute TiCN Coated Double Ended Square End Mill

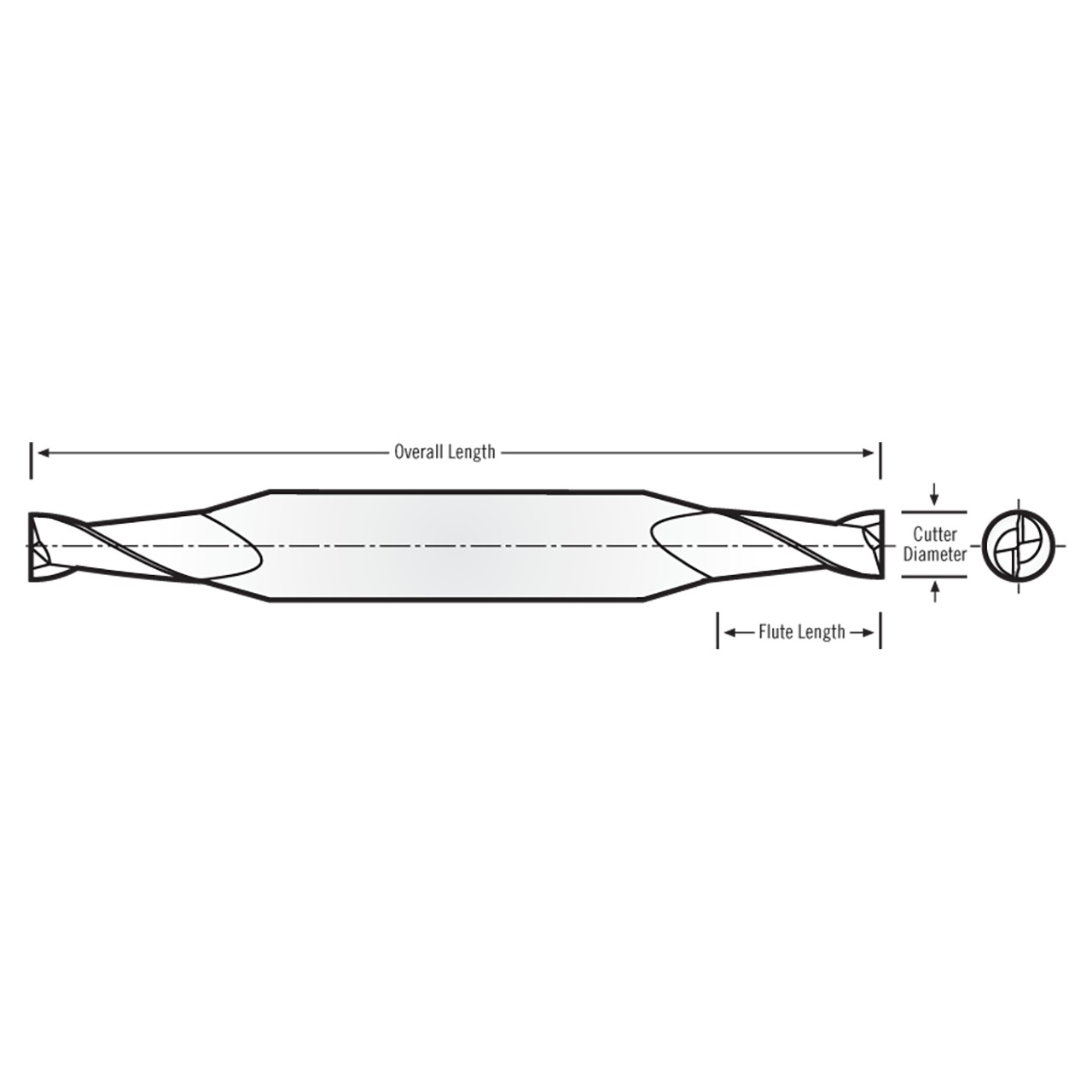

Product Specifications
# Manufacturer NumberT6-202-04.5-C
Cutting Diameter (Inch)0.1406"
Shank Diameter (Inch)0.1875"
Maximum Cutting Diameter (Inch)0.1411"
Flute Length (Inch)0.4375"
Overall Length (Inch)2.5000"
Helix Angle (Degree)30 Degree
Helix Direction (Hand)Right Hand
Cutting Direction (Hand)Right Hand
Number of Flute2
CoatingTiCN Coated
Product TypeDouble Ended Square End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
RobbJack
Mill Diameter (Inch):
9/64"
Mill Diameter (Decimal Inch):
0.1406"
Mill Diameter (mm):
3.57mm
Number of Flutes:
2
Finish/Coating:
TiCN
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
interval quantity:
1
