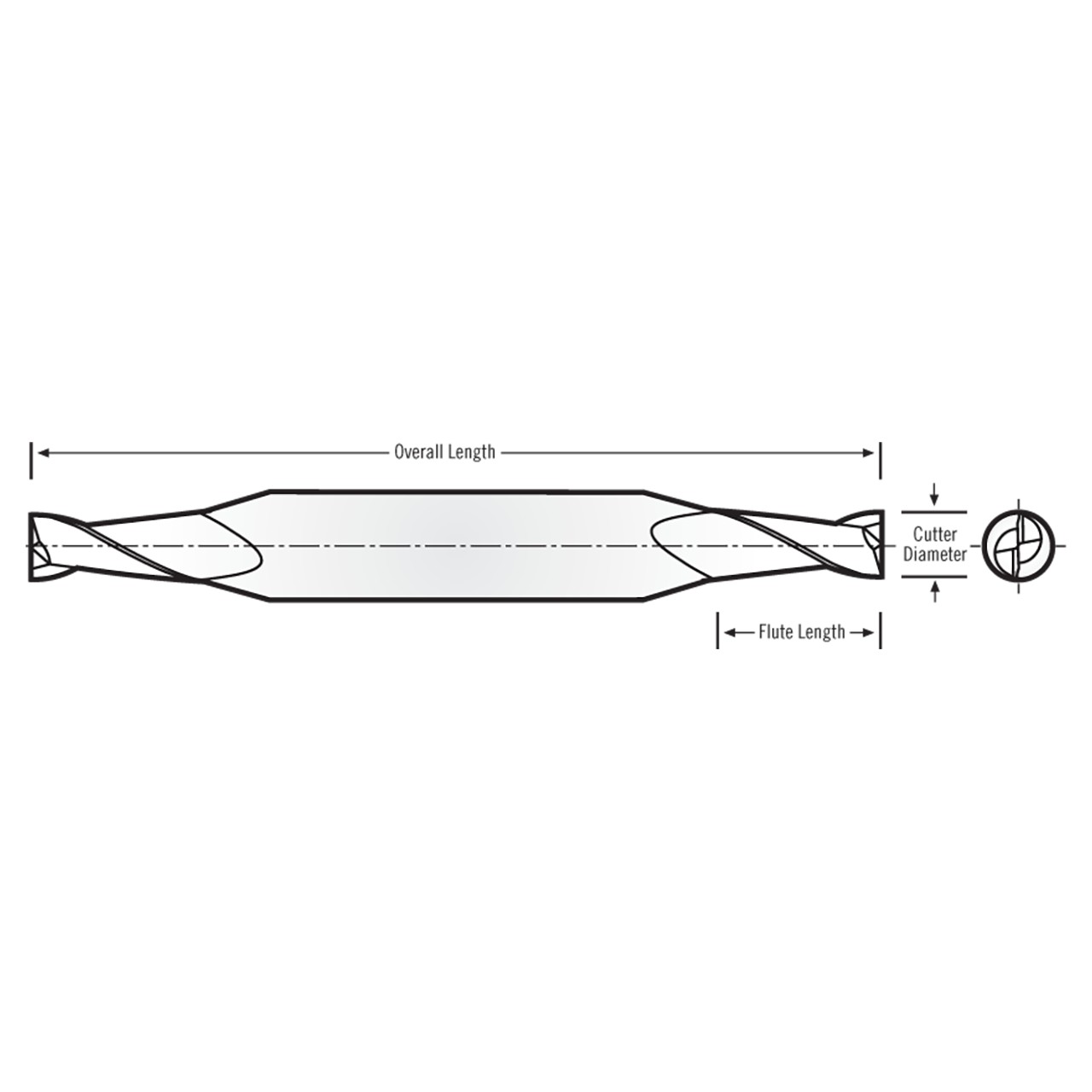

RobbJack T6-202-05.5-C | 0.1718" Diameter x 0.1875" Shank x 2.5000" OAL 2 Flute TiCN Coated Double Ended Square End Mill

$63.41
Brand:
RobbJack
Mill Diameter (Inch):
11/64"
Mill Diameter (Decimal Inch):
0.1718"
Mill Diameter (mm):
4.36mm
Number of Flutes:
2
Finish/Coating:
TiCN
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
SKU:
25208164
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
RobbJack T6-202-05.5-C | 0.1718" Diameter x 0.1875" Shank x 2.5000" OAL 2 Flute TiCN Coated Double Ended Square End Mill

Product Specifications
# Manufacturer NumberT6-202-05.5-C
Cutting Diameter (Inch)0.1718"
Shank Diameter (Inch)0.1875"
Maximum Cutting Diameter (Inch)0.1723"
Flute Length (Inch)0.4375"
Overall Length (Inch)2.5000"
Helix Angle (Degree)30 Degree
Helix Direction (Hand)Right Hand
Cutting Direction (Hand)Right Hand
Number of Flute2
CoatingTiCN Coated
Product TypeDouble Ended Square End Mill
