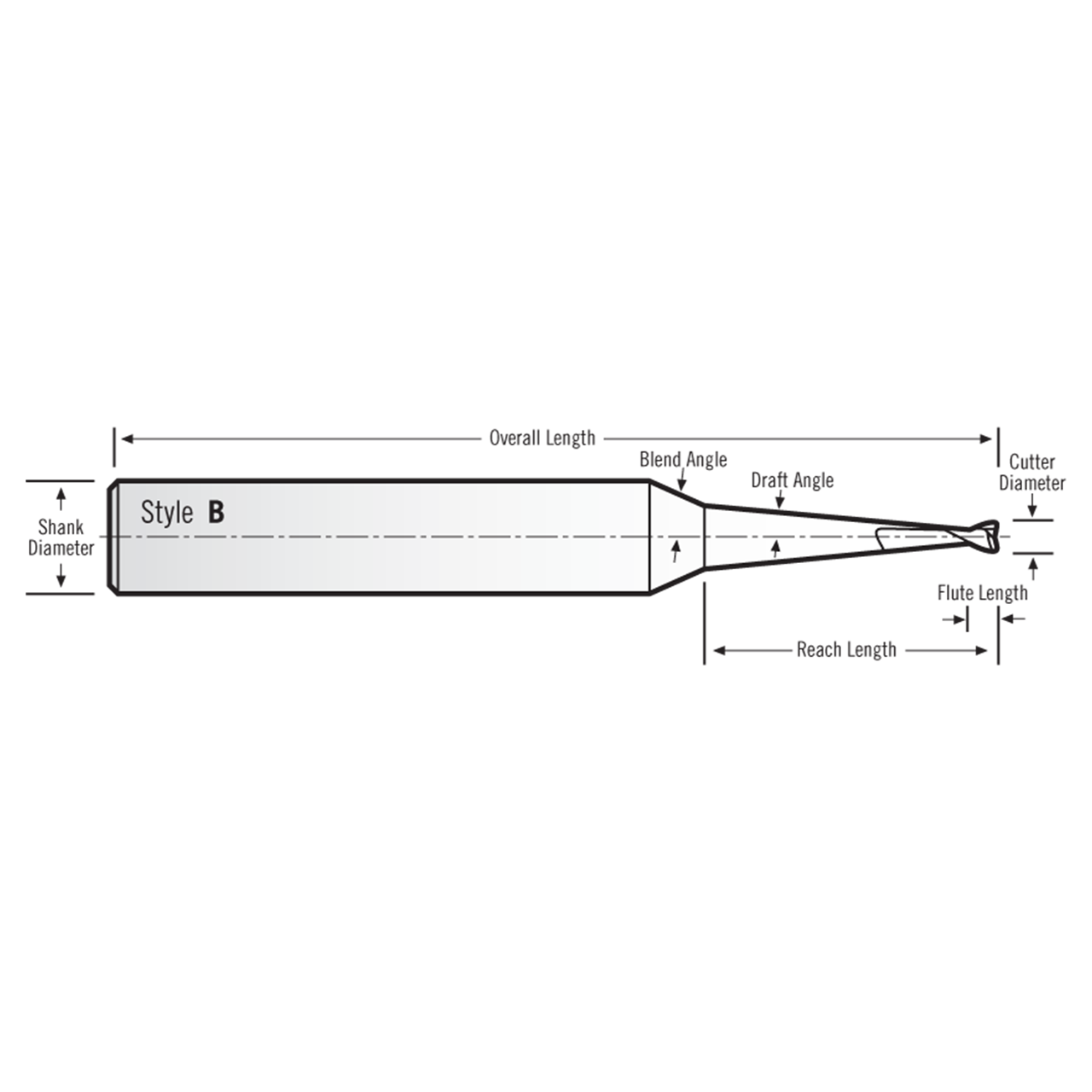

| Manufacturer Part Number | TM-205-03 |
| Cutting Diameter (Decimal Inch) | 0.094" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Maximum Cutting of Diameter (Decimal Inch) | 0.093" |
| Overall Length (Decimal Inch) | 2.500" |
| Flute Length (Decimal Inch) | 0.094" |
| Reach Length (Decimal Inch) | 1.313" |
| Neck Diameter (Decimal Inch) | 0.089" |
| Corner Radius (Decimal Inch) | 0.020" |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | TM-205 |
| Coating | AlTiN |
| Product Type | Square End Mill |
