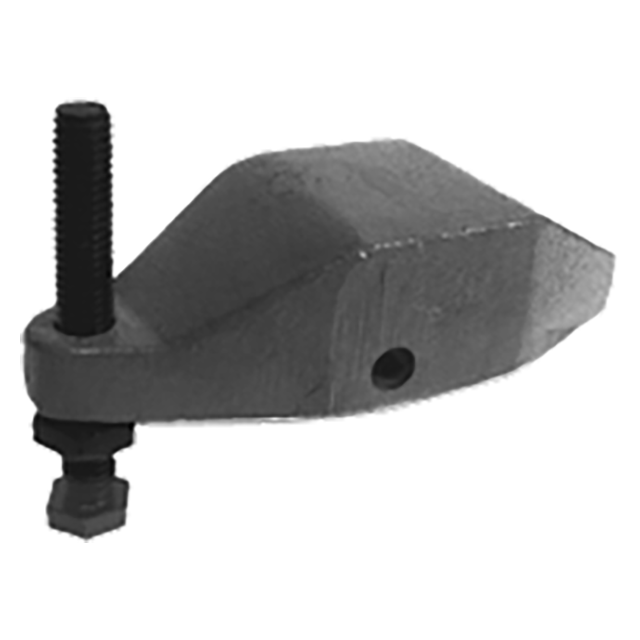

Roemheld CLR-0354-004-SCA | M20 Thread Pivoting Clamping Arm

Roemheld Pivoting Clamping Arms

Complete assembly with a rugged nodular iron clamping arm that pivots on a forged steel carrier. This swing-clamp arm requires a rear support and allows operating pressures up to 7250 psi. Clamping end is held up by spring force. Adjustable contact bolt furnished. Longest reach of any standard arm.

Mounting

To mount on a Swing Clamp, first remove the carrier from the clamping arm. Mount carrier on the tapered piston rod at desired orientation, then fasten with the piston-rod nut included with swing clamp. Reassemble arm on the carrier.

Material

Parts Specification
