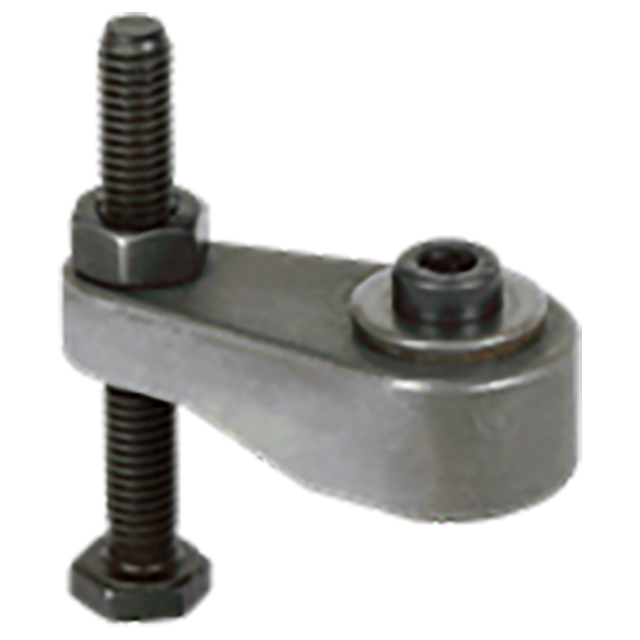

Roemheld Standard Clamping Arms
5000 psi maxStandard Clamping Arms are compact yet provide considerable reach. An adjustable contact bolt is furnished.
Mounting
Mount clamping arm on the piston rod at desired orientation, then fasten with the socket-head cap screw and washer.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Arm | Steel | - | Black Oxide | Yes | Yes |
| Contact Bolt | Steel, Grade 8 | - | Black Oxide | Yes | Yes |

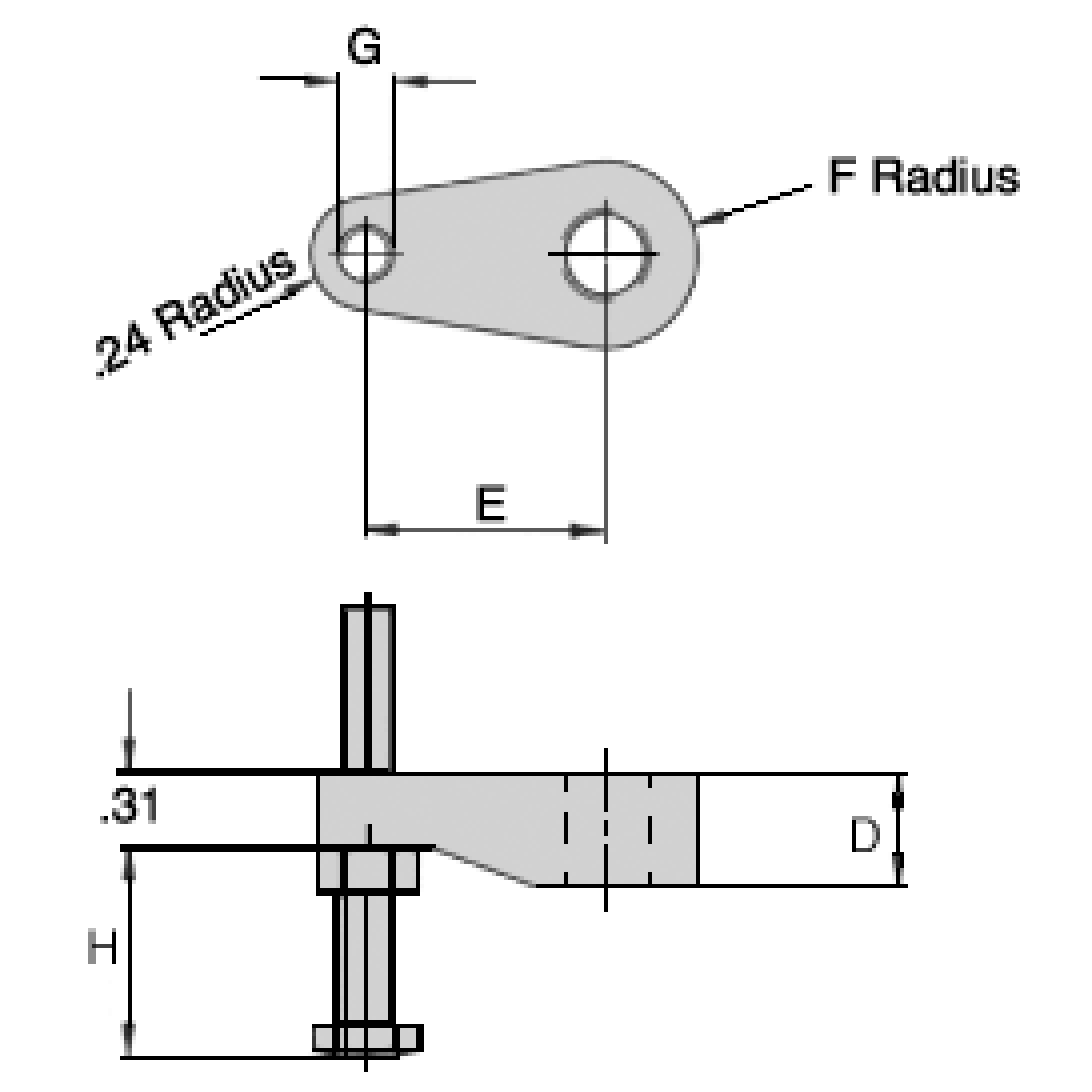

Parts Specification
| Clamp Size | Overall Length (mm) | D (mm) | E (mm) | F (mm) | G Thread | H Max (mm) | Weight(lbs) |
| 1 Series | 2.95mm | 0.472mm | 1.02mm | 0.39mm | M6 | 1.57mm | 0.2 lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Roemheld
