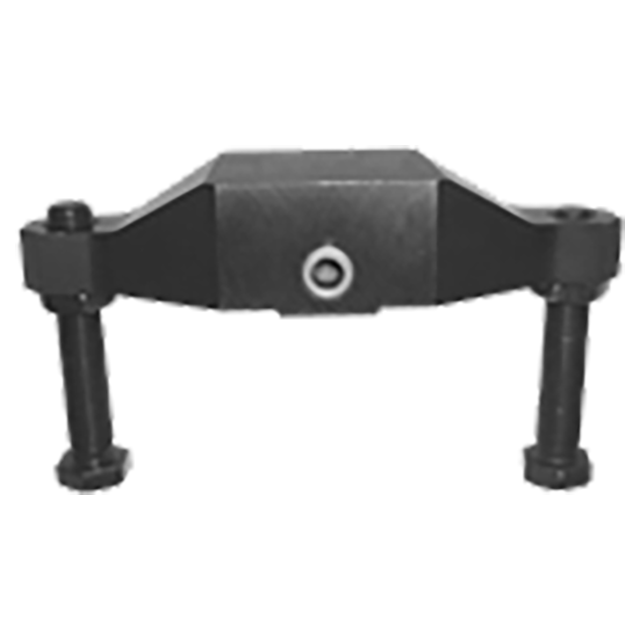

Roemheld CLR-0354-082-SCA | 1 Series Size Black Oxide Coated Double Clamping Arm

Roemheld Double Clamping Arms

Double Clamping Arms are used to clamp two workpieces at the same time. The double arm pivots on a steel carrier to apply equal force to both workpieces. Two adjustable contact bolts furnished.

Mounting

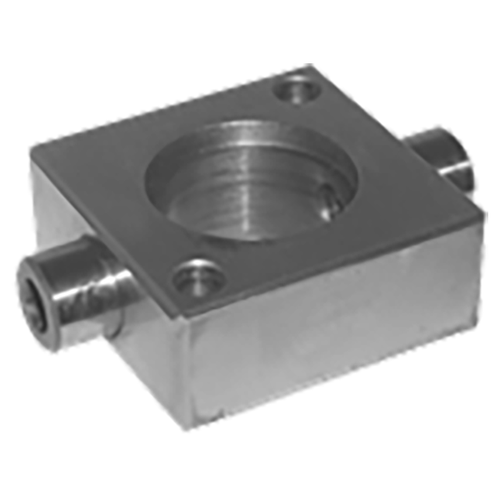

To mount on a Swing Clamp, first remove the carrier from the clamping arm. Mount carrier on the piston rod at desired orientation, then fasten with the socket-head cap screw and washer. Reassemble arm on the carrier.

Material

Parts Specification
