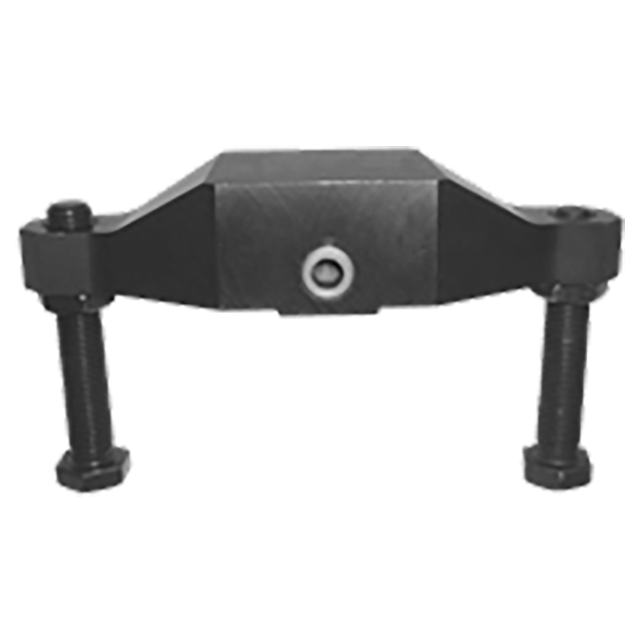

Roemheld CLR-0354-134-SCA | 7 Size Steel Black Oxide Coated Double Clamping Arm

$1,148.45
Brand:
Roemheld
SKU:
50022679
UPC:
Weight:
1.23 LBS
Shipping:
Free Shipping

Roemheld Double Clamping Arms

7250 psi max

Double Clamping Arms are used to clamp two workpieces at the same time. The double arm pivots on a steel carrier to apply equal force to both workpieces. Two adjustable contact bolts furnished.

Mounting

To mount on a Swing Clamp, first remove the carrier from the clamping arm. Mount carrier on the tapered piston rod at desired orientation, then fasten with the piston-rod nut included with Swing Clamp. Reassemble arm on the carrier.

Material

Arm > Nodular iron. Carrier > 1045 steel. Threaded bolt and spring elements > Steel. Contact bolts > Steel, grade 8, black oxide Finish.

Parts Specification

Clamp SizeABCD Diameter (mm)EF MaxGSw (mm)Weight (lbs)
7 Series9.294.132.2050mm3.943.86M208mm11.5 lbs.
