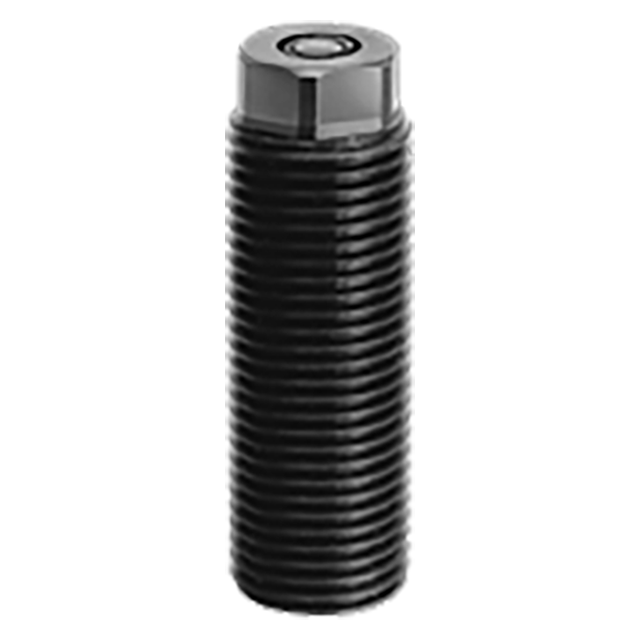

Tiny push clamps with a solid plunger. Threaded-body clamps provide considerable force in a small size. The version is designed for direct connection to tubing with standard compression fittings. Optional extended piston rod provides extra reach.
Applying fluid pressure advances the plunger. Spring return.
Threaded-Body Push Clamps have a positive stroke stop in extended position, but not in retracted position. Do place a load on the plunger while retracted.
| Item | Material | Heat Treat | Finish |
| Plunger | Steel | - | Case Hardened |
| Body | Steel | - | Black Oxide |
| Maximum Clamping Force (lbs) | Maximum Clamping Force (kn) | Body Thread | Stroke (mm) | Overall Height (mm) | Piston Rod Diameter (mm) | Piston Rod Extension When Retracted (mm) |
| 560 lbs. | 2.5 kN | M16x1.5 | 10mm | 48mm | 5mm | None |
