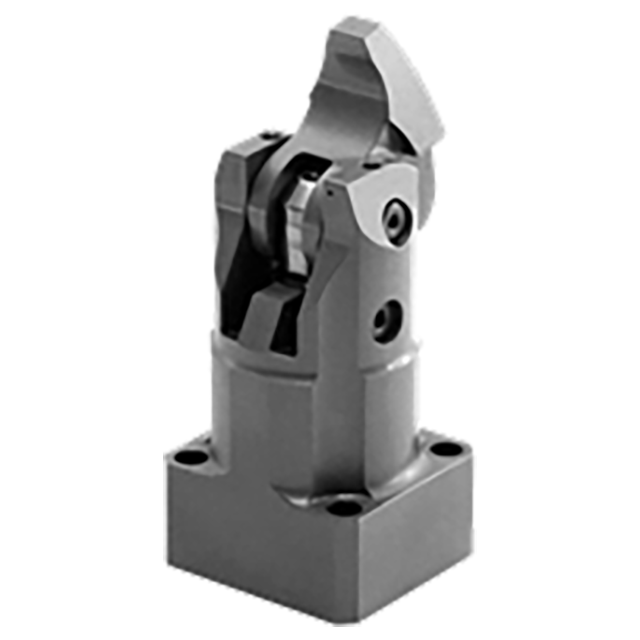

Compact Clamps have a sturdy lever mechanism that pivots into clamping position. These clamps are extremely compact, especially in footprint. The clamping lever pivots a full 90° for clear loading even when using custom long clamping levers. Ideal for clamping in narrow recesses. The flange-base version shown here is designed specifically for space-saving manifold mounting. Integrated pneumatic clamping monitoring allows checking for workpiece presence and clamping pressure.
Clamping of a cast part with special clamping lever
Clamping of a cast part with special clamping lever
Applying fluid pressure to the A (clamping) port advances the piston, which pivots the clamping arm into position. Switching pressure to the B (unclamping) port positively retracts the piston and the attached clamping arm.
Optional Long Arm
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | - | - | Yes | Yes |
| Clamp Size | Arm Type | Maximum Clamping Force (lbs) | Maximum Clamping Force (kn) | Length (mm) | Width (mm) | Height (mm) | Clamping Stroke (mm) |
| 3 | Long | 1680 lbs. | 7.5 kN | 96.5mm | 58mm | 102.9mm | 7mm |
