Roemheld Hinge Clamps-Top Flange, Cartridge Type, with Flat Clamping Lever
3600 psi maxSingle and Double Acting
Hinge Clamps have a sturdy linkage configuration that moves the clamping arm forward as it pivots into clamping position. This specially designed linkage allows the clamp to exert nearly perfectly vertical clamping force. The clamping arm retracts fully for clear loading from above. Ideal for clamping in narrow recesses. Durable, economical clamp with an easy-to-clean mechanism and standard metallic wiper. The top-flange cartridge-type version is designed specifically for space-saving manifold mounting.
Clamping Action

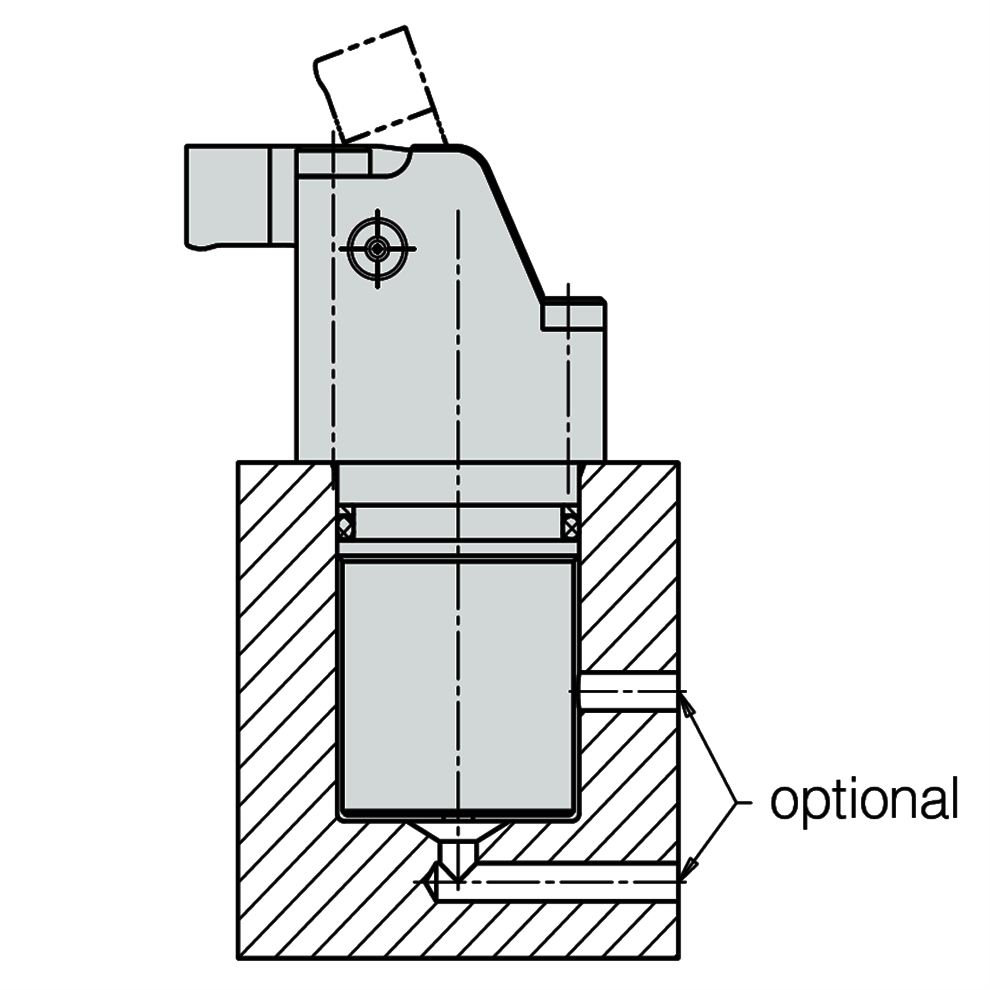

Mounting & Fluid Supply
Double Acting
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | - | - | Yes | Yes |
Parts Specification

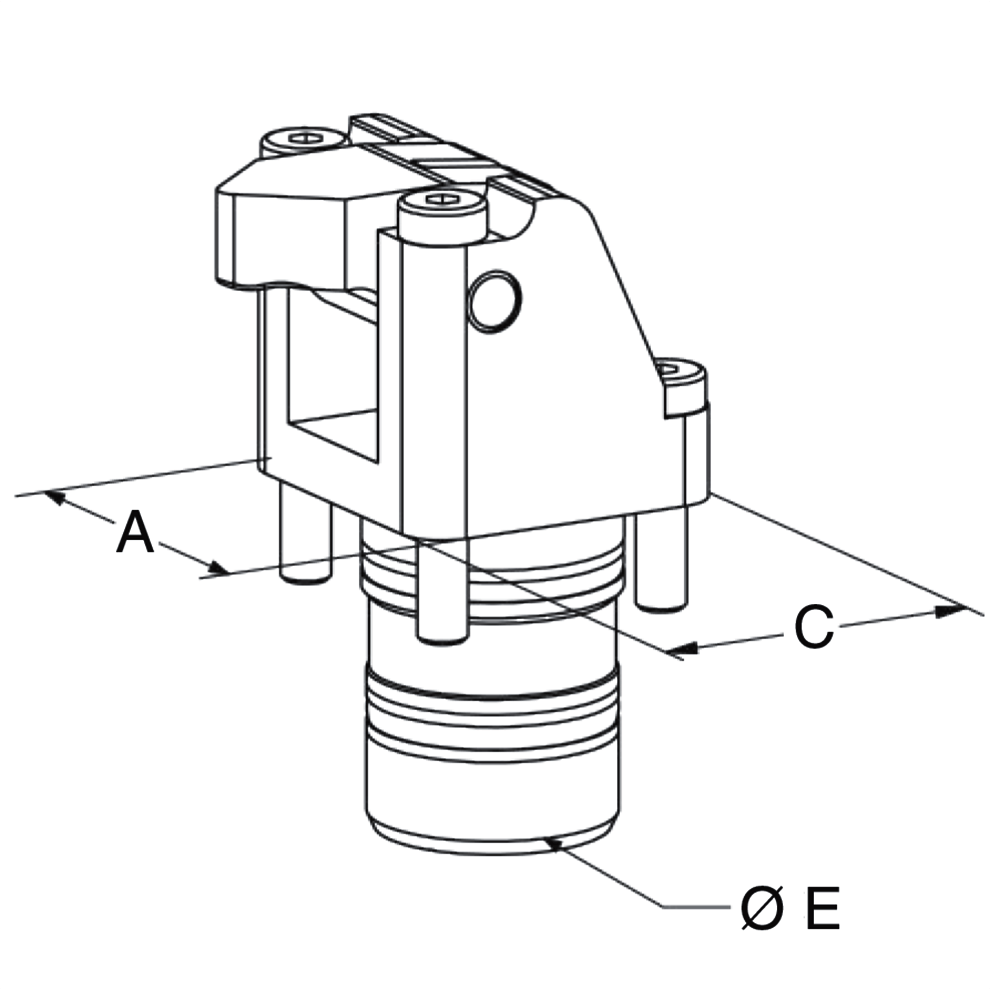

| Clamp Size | Version | Maximum Clamping Force (lbs) | Maximum Clamping Force (kn) | A (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) |
| 2 | Without Clamping Lever | 1120 lbs. | 5 kN | 42mm | 81.5mm | 42mm | ---mm | 33mm |
