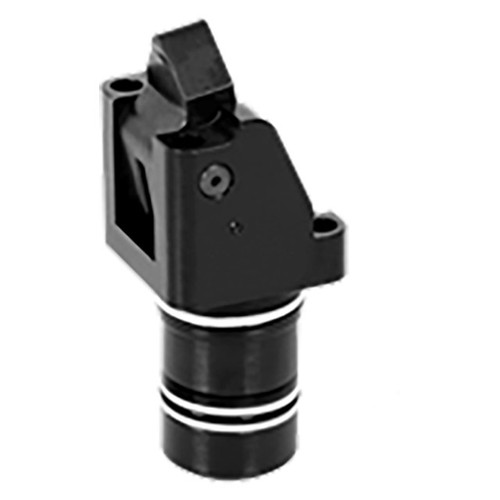

Hinge Clamps have a sturdy linkage configuration that moves the clamping arm forward as it pivots into clamping position. This specially designed linkage allows the clamp to exert nearly perfectly vertical clamping force. The clamping arm retracts fully for clear loading from above. Ideal for clamping in narrow recesses. Durable, economical clamp with an easy-to-clean mechanism and standard metallic wiper. The top-flange cartridge-type version is designed specifically for space-saving manifold mounting.
Double Acting
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | - | - | Yes | Yes |
| Clamp Size | Version | Maximum Clamping Force (lbs) | Maximum Clamping Force (kn) | A (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) |
| 2 | With Standard Clamping Lever | 1120 lbs. | 5 kN | 42mm | 81.5mm | 42mm | 58mm | 33mm |
