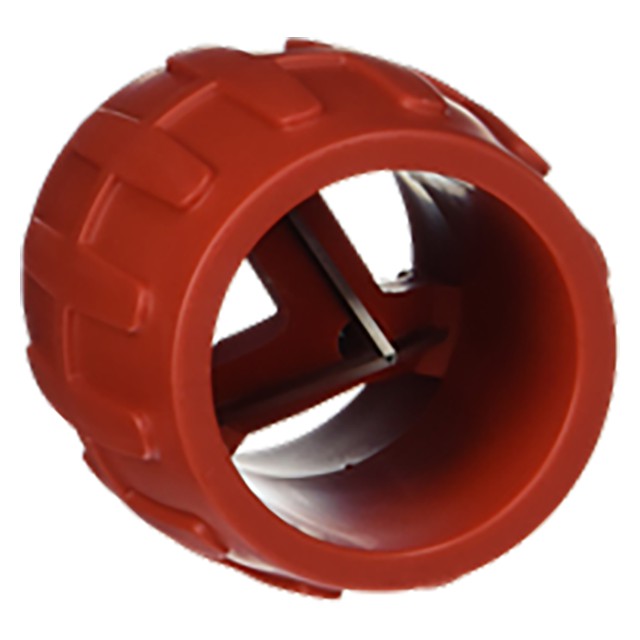

Roemheld CLR-202-TL | 1/4" Shank Drill Bit Deburring Tool

Deburring Tools

High-quality tool for deburring small-diameter hydraulic tubing. Hardened steel chamfer cutters deburr the tubing's inside and outside diameters simultaneously. Convenient handle allows fast, safe deburring.

Operation

To deburr, simply insert the tip of the I.D. cutter into tubing end, then twist the handle clockwise until all burrs are removed.

Tubing Installation

Tubing pieces should be prepared for installation by following these steps:

1) Cut tubing to length with a Tubing Cutter, or hacksaw.

2) File or sand tube end square.

3) Deburr both O.D. and I.D., preferably with a Deburring Tool.

4) Clean with solvent to remove chips, dirt, and rust-preventative coating.

5) Blow clean with a shop air line.

6) If using 37°-flare fittings, flare tubing with a Flaring Tool.

7) Bend as required, preferably with a Tubing Bender.

Parts Specification
