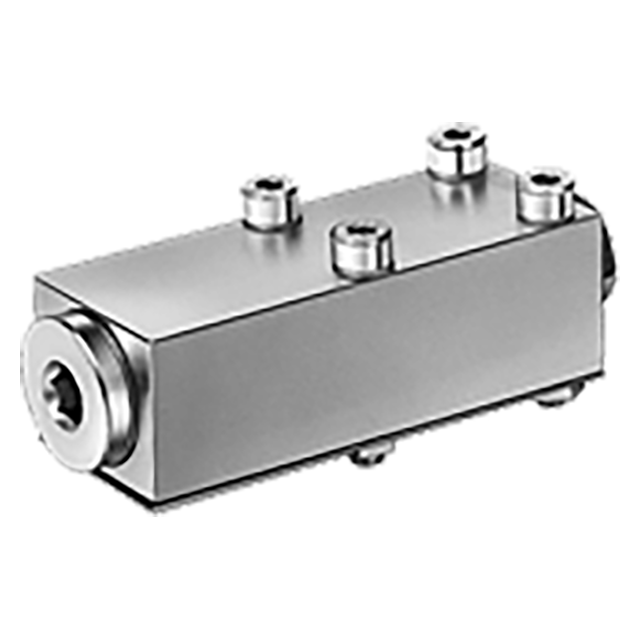

Roemheld CLR-2951-416-V | Standard Capacity Size Pilot-Operated Check Valve

Roemheld Manifold Mounted

Holds clamping pressure until released by a separate pilot pressure line (allows only one-way flow until released). Can be used as a safety device in case the fluid line to the fixture could become damaged. Can also be used to prevent workpieces from floating between opposing clamps. The version is manifold mounted, to eliminate exposed fluid lines. Also available with standard fittings for mounting with exposed tubing.

Operation

Flow from B –> A is free flow. Return flow from A –> B is locked until hydraulically unlocked by pressurizing the control port Z. Port L is for a leakage line.

Design Considerations

Pilot-Operated Check Valves are not suitable for locking double-acting swing clamps (pull-type cylinders). Due to the unfavorable surface-area ratio of these elements, the control pressure is not sufficient for unlocking and dangerous pressure intensification can occur.

Mounting & Fluid Supply

Fluid enters and exits through fThe O-ring ports fed by drilled fixture passages. For manifold mounting, the mounting surface must be ground flat to ensure proper O-ring sealing (32 RMS max). Fasten with fThe #8 or M4 cap screws. Mount in any position, horizontal or vertical.

Parts Specification
