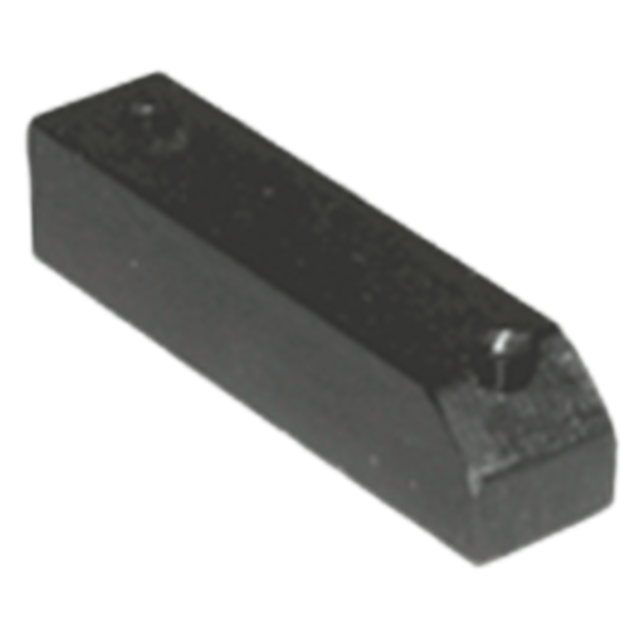

ROEMHELD Long Clamping Arms for Air-Powered Swing Clamps
Long blank clamping arm for Air-Powered Swing Clamps. This blank arm can be easily tapped or otherwise modified to make a custom clamping arm.
Mounting
Mount arm on the tapered piston rod at desired orientation, then fasten with the socket-head cap screw and washer included with Swing Clamp
Material
| Material | Heat Treat | Finish |
| Steel | - | Black Oxide |
Parts Specification
| Fits Clamp Size | A (mm) | B (mm) | D Diameter (Inch) +0.05 (mm) | K (mm) |
| 3 Series | 62mm | 7mm | 7.85mm | 12mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Roemheld
