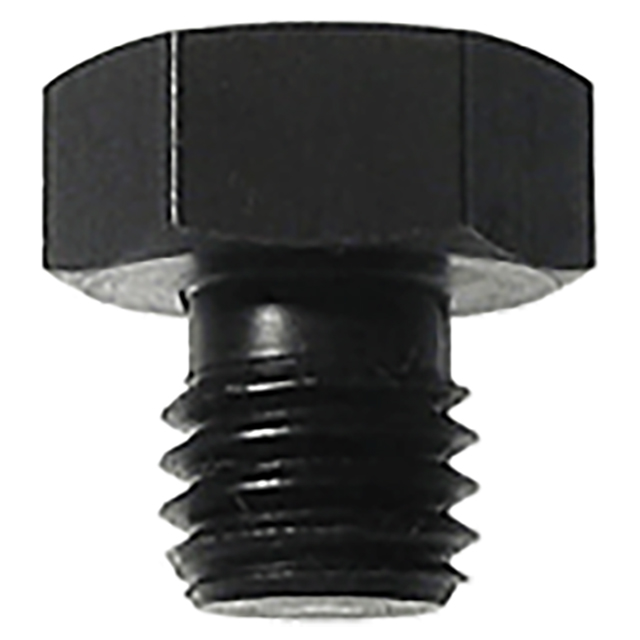

Contact Bolts are for general-purpose use as contact points on Threaded-Body Push Clamps, Block Cylinders, Threaded Cylinders, and other workholding clamps. These hardened steel bolts protect the cylinder rod and provide a contact point to hold the workpiece securely. The radius-head version provides firm contact even if the workpiece's surface is somewhat uneven.
| Material | Heat Treat | Finish |
| 1144 Steel or Equivalent | Heat Treated Rc 50-60 | Black Oxide |
| For Nom. Cyl. ร D (mm) | A (mm) | B (mm) | C (mm) | F (mm) | R (mm) | R (mm) | Hex (mm) |
| 40mm | M 16mm | 20mm | 30mm | 16mm | 60mm | 0.3mm | 24mm |
