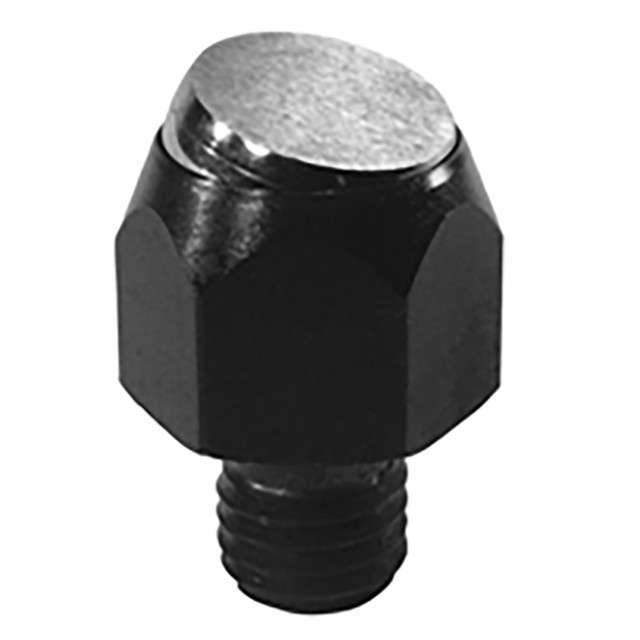

Roemheld Power Workholding Swivel Contact Bolt
Power Workholding Swivel Contact Bolts are for general-purpose use as contact points on Threaded-Body Push Clamps, Block Cylinders, Threaded Cylinders, and other workholding clamps. These hardened steel bolts protect the cylinder rod and provide a contact point to hold the workpiece securely. The swivel-head version distributes clamping force to prevent marring.
Material
| Material | Heat Treat | Finish |
| Steel | Heat Treated Rc 50-60 | Black Oxide |
Parts Specification
| A Thread | B (mm) | C (mm) | Ød (mm) | Øe (mm) | F (mm) Across Flats |
| M16 | 16mm | 27mm | 20mm | 30mm | 27mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Roemheld
