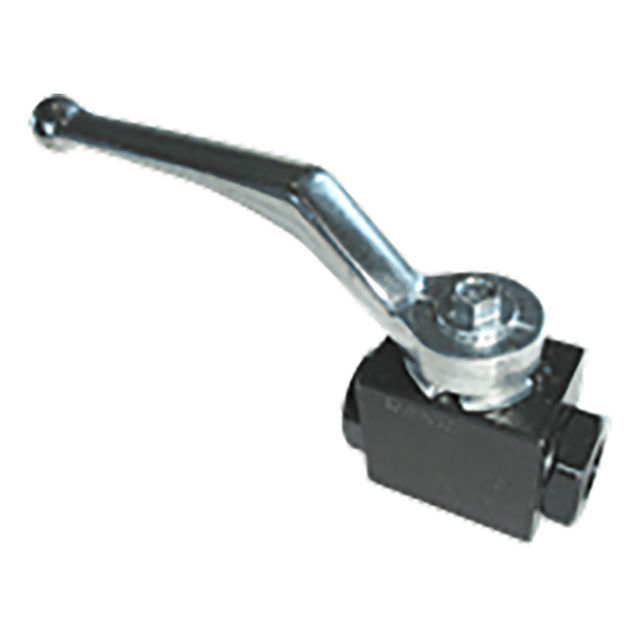

Roemheld CLR-400-V | In Line Mounting Shutoff Valve

Roemheld Shutoff Valves

High-pressure ball-type hydraulic valve. Often used to hold fixture pressure during transport with the power source disconnected (for example, a Shutoff Valve is included as part of every manual Pallet Decoupler). This valve can also be used to shut off unused lines in a multi-purpose fixture.

Operation

To close valve, turn lever 90°. To reopen valve, turn lever back 90° to original position.

Design Considerations

A Shutoff Valve cannot be used to clamp and unclamp; instead, a Clamping Valve, with a return line, is required.

Mounting & Fluid Supply

Mount in-line, in any position, horizontal or vertical. Two 1/4" BSPP ports.

Parts Specification
