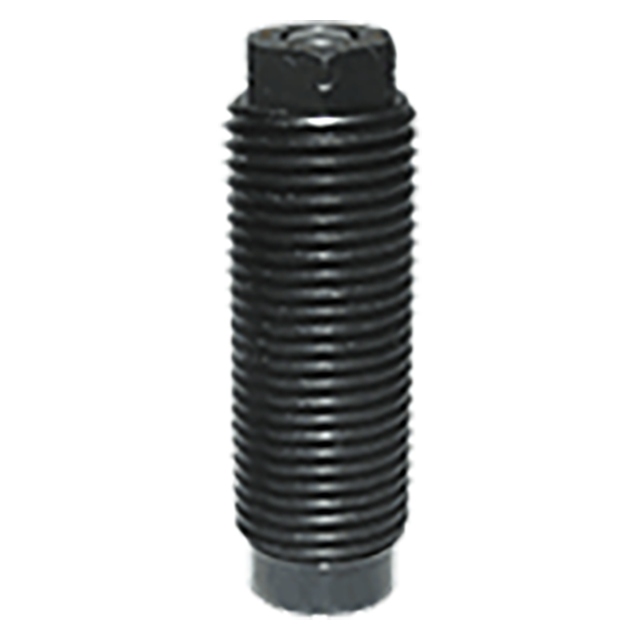

Roemheld CLR-802-TB | 1/2-20" Thread x 10mm Stroke Threaded-Body Cylinder

Roemheld Threaded-Body Cylinders-Mini

Tiny push clamps with a solid plunger. Threaded-body clamps provide considerable force in a small size. These small clamps can be placed very close together, especially when manifold mounted (.60" minimum spacing). Clamps can be screwed all the way down to their hex flats, or installed at partial depth.

Clamping Action

Applying fluid pressure advances the plunger. Spring return.

Optional Extended Piston Rod

Design Considerations

Threaded-Body Push Clamps have a positive stroke stop in extended position, but not in retracted position. Do place a load on the plunger while retracted.

Mounting & Fluid Supply

Several possible mounting methods:

1) install clamp directly into a flat-bottom tapped hole in the fixture. 2) install clamp into a Mounting Block;

3) install clamp into a Feeder Cap and mount through a fixture wall (secure with a Jam Nut);

4) install in a plain tapped hole and secure with a Sealing Nut. In the first three cases, hydraulic sealing is accomplished by a Sealing Washer (furnished) placed directly underneath the clamp.
