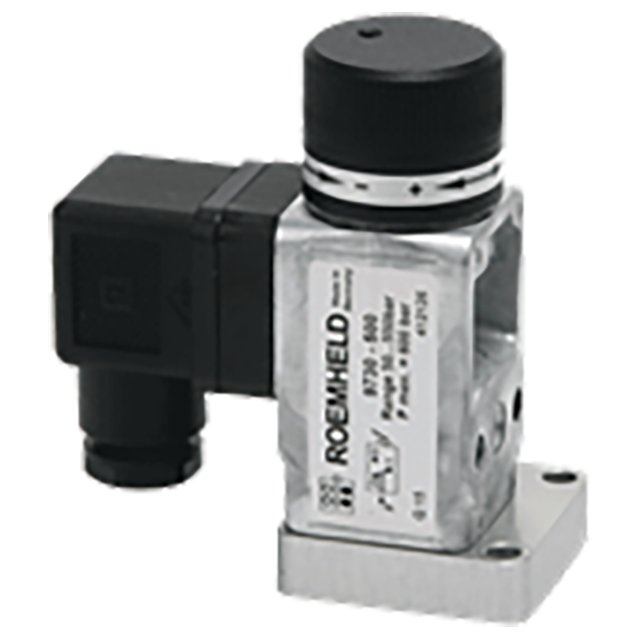

Roemheld CLR-9730-501 | 725 to 5075 PSI Range Pressure Switch

Roemheld Pressure Switches

Pressure Switches are used to signal the presence or absence of hydraulic pressure electrically, by opening or closing a microswitch. Applications include pressure-dependent machine control, ensuring proper clamping pressure before machining starts, and shutting off machines if pressure drops below a set level. The Pressure Switch with the standard DIN 43650 electrical connector included. This connector can be indexed 4 x 90°.

Mounting

For manifold mounting, the mounting surface must be ground flat to ensure proper O-ring sealing. Fasten clamp with two socket-head cap screws. O-ring and cap screws are furnished.

Parts Specification
