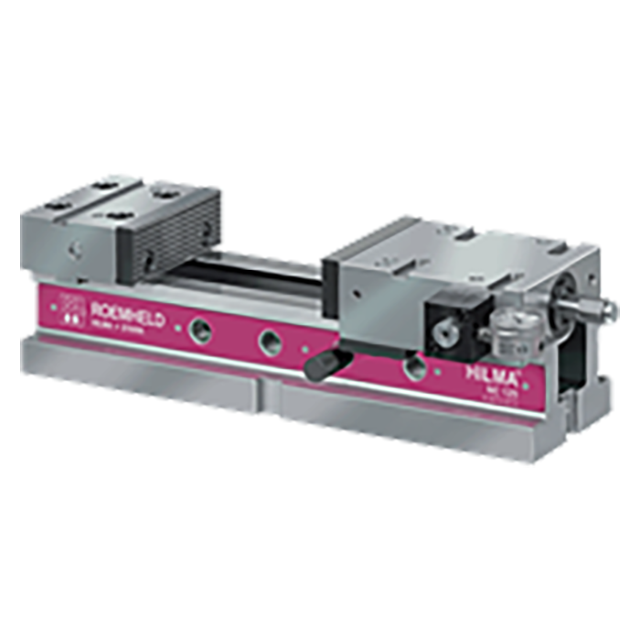

Roemheld CLRH-9-3074-0215-VS | 160mm Width Hydro-Mechanical Vise with CARVESMART Jaw Bundle

$5,641.04
Brand:
Roemheld
SKU:
50019257
UPC:
Weight:
1.23 LBS
Shipping:
Free Shipping

NC160 Hydro-Mechanical Vises with CARVESMART Jaw Bundle (160mm)

Hydro-Mechanical Operation

Our Hilma NC-series vises are ideal for precision, high-production machining on vertical machining centers. Fixed and sliding jaws are precision ground to accept top-jaw tooling. Finest-quality construction for excellent rigidity and durability. The hydro-mechanical version is manually operated, with final high force applied easily using hydraulic power assist (no power unit required). Made in Germany.

The NC125 hydro-mechanical vise has a jaw width of 125mm. Maximum clamping force of 11000 lbs is achieved with only 21 lbs manual crank force.

Application Information

Operation (Hydrualic Version)

During initial setup, move the sliding jaw into approximate position by moving the hardened steel cross-pin into a different hole in the base. To clamp, turn the crank handle clockwise to move the sliding jaw mechanically toward the workpiece. Once resistance is met, further turning automatically disengages the screw spindle and gradually applies full hydraulic pressure with relatively little effort. Turn handle counterclockwise to unclamp.

Mounting

Vises are all slotted for 20mm fixture keys, to provide accurate mounting on T-slotted machine tables. Use two Step Fixture Keys to adapt to a specific table-slot size. Fasten with Vise Clamps holding the bottom ledge.

Accuracy

Vise bed is flame hardened and ground to a +/-0.0004" height dimension. Fixed and sliding jaws are ground to a +/-0.0008" height dimension to accept top-jaw tooling. Fixed-jaw location is +/-0.0016" from the fixture-key slots.

Accessories

A crank handle is furnished with each vise. The optional right-angle drive unit (hydro-mechanical version only) is highly recommended, especially if vises are mounted vertically.

Parts Specification

VersionA Jaw Width (mm)Maximum Clamping Force (lbs)Maximum Cranking Force Required (lbs)B (mm)C (mm)D (mm)D1 (mm)D2 (mm)E (mm)F (mm)L Max (mm)S1 (mm)S2 (mm)S3 (mm)Sw1 (mm)T (mm)U (mm)W (mm)Weight (lbs)
Force Gauge in lbs.160mm11000 lbs.21 lbs.54mm18mm120.2mm72.2mm37.2mm95mm550mm684mm308.5mm502.5mm572.5mm19mm27mm70mm65mm131 lbs.
