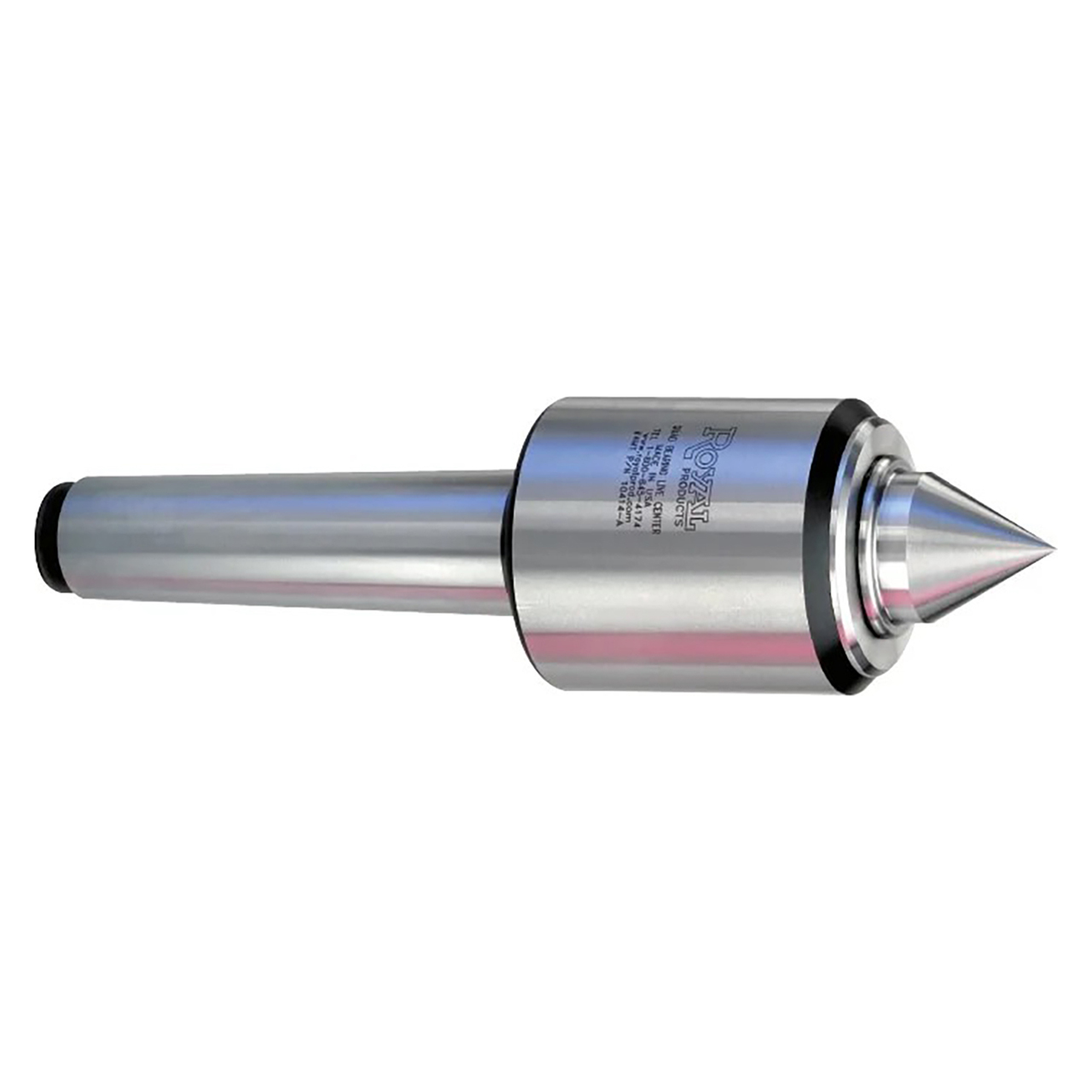

- An excellent choice for precision turning, grinding, and hard-turning
- Precision, preloaded bearing assembly provides exceptional rigidity and accuracy
- Low-profile head offers superior tool clearance
- Exclusive Roto-Shield coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life
- Body and point are hardened and ground for strength and long life
Product Specifications
| Center Dimension A (Center Taper) | 3 MT |
| Center Dimension B (Inch) | 1.70 |
| Center Dimension E (Inch) | 2.120 |
| Weight of Workpiece (lbs.) | 885 |
| Center Dimension F (Inch) | 1.07 |
| Center Dimension G (Inch) | 0.88 |
| Max Suggested RPM | 6,000 |
| Thrust Load (lbs.) | 1,270 |
