- Full-diameter long point for shaft work and parts with large center holes
- A reduced-diameter long point for use when greater clearance is needed
- A small bull-nose point for use with tubes or parts with large center holes
- A female point with a 90 Degree included angle for locating on OD part chamfers
- A male point with a 90 Degree included angle for locating on internal part chamfers

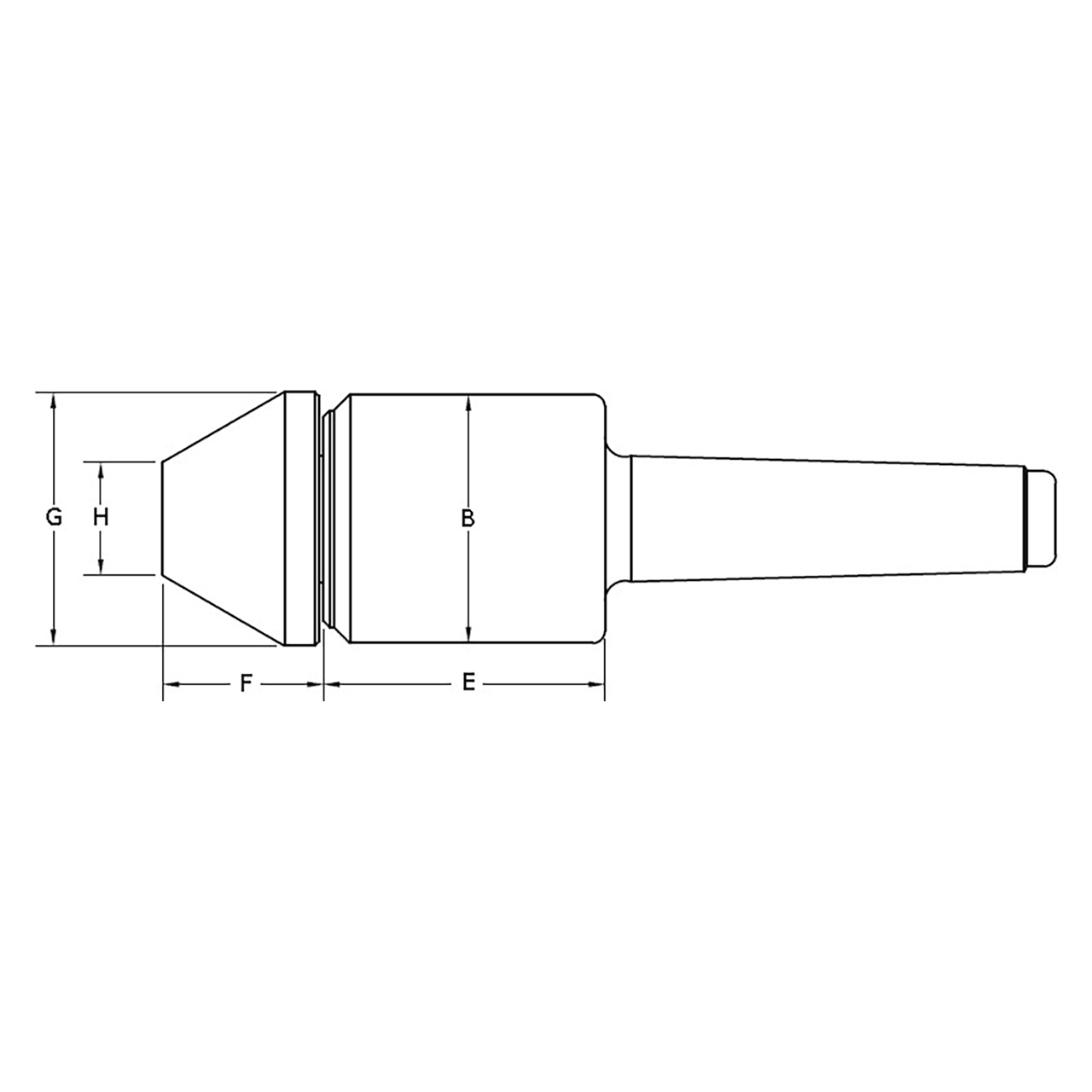

Product Specifications
| Center Dimension A (Center Taper) | 5 MT |
| Center Dimension B (Inch) | 2.45 |
| Center Dimension E (Inch) | 2.780 |
| Weight of Workpiece (lbs.) | 1,905 |
| Center Dimension F (Inch) | 1.58 |
| Center Dimension G (Inch) | 2.50 |
| Center Dimension H (Inch) | 1.12 |
| Max Suggested RPM | 5,000 |
| Thrust Load (lbs.) | 2,150 |
