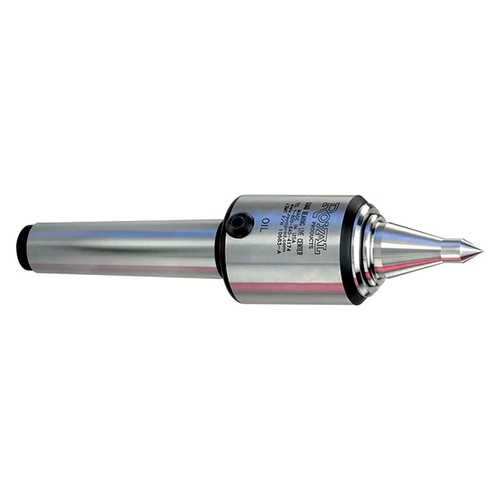

Royal Products 10693 | 3 MT Taper High-Speed Precision Carbide-Tipped Live Center

SKU: 55003483 Weight: 1.94 LBS Minimum Purchase: 1 unit
UPC:
$1,695.00 $1,440.75
(You save $254.25)
Shipping: Free Shipping

About This Item

  • A true high-speed live center – up to 12,000 rpm
  • Lubricated with lightweight spindle oil instead of grease for reduced turning resistance and lower operating temperatures
  • Precision, preloaded bearing assembly provides exceptional rigidity and accuracy
  • Low-profile head and extended point combine to offer superior tool clearance
  • Exclusive Roto-Shield coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life
  • Body and point are hardened and ground for strength and long life

Product Specifications
Center Dimension A (Center Taper) 3 MT
Center Dimension B (Inch) 1.70
Center Dimension E (Inch) 2.120
Weight of Workpiece (lbs.) 180
Center Dimension F (Inch) 1.75
Center Dimension G (Inch) 0.88
Center Dimension H (Inch) 0.38
Max Suggested RPM 12,000
Thrust Load (lbs.) 650
