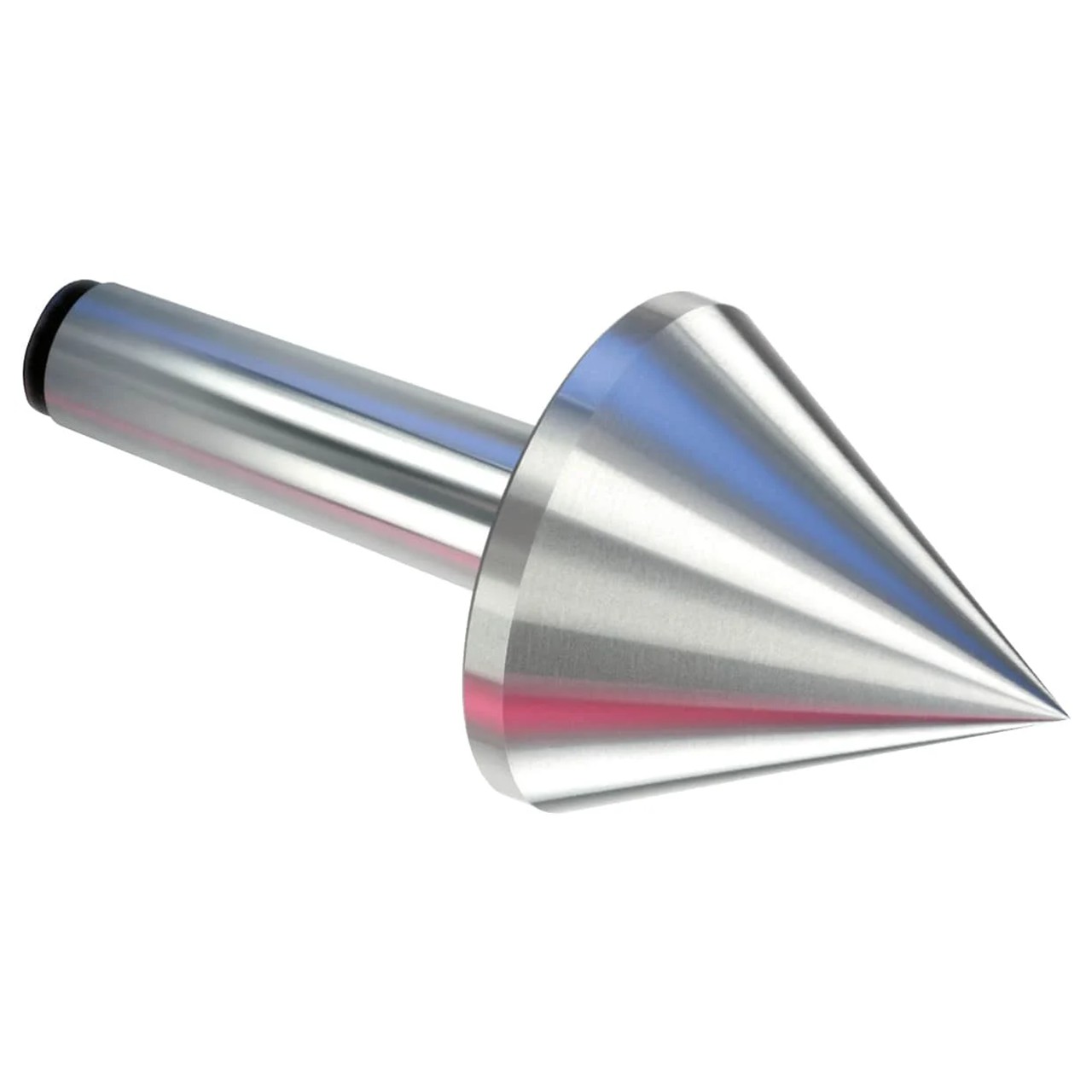

- Designed for turning pipes, tubes, and parts with extra-large center holes
- Two matched angular contact bearings provide good thrust and radial load ratings
- Head diameter is 1/8" over nominal size, enabling these centers to cover a wider range of workpieces
Product Specifications
| Center Dimension A (Center Taper) | 3 MT |
| Center Dimension B (Inch) | 3.15 |
| Center Dimension E (Inch) | 3.390 |
| Weight of Workpiece (lbs.) | 475 |
| Max Suggested RPM | 5,000 |
| Thrust Load (lbs.) | 1,780 |
