Royal Products 11034 | 4 MT Taper Carbide-Tipped Half Dead Center

Royal Products 11034 | 4 MT Taper Carbide-Tipped Half Dead Center

Name: Royal Products 11034 | 4 MT Taper Carbide-Tipped Half Dead Center
Brand: Royal Products
SKU: 55003375
Price: 553.5 USD
Availability: InStock

SKU: 55003375 Weight: 1.94 LBS Minimum Purchase: 1 unit

UPC:

$615.00 $553.50

(You save $61.50)

Total Price: $553.50

Quantity:

Shipping: Free Shipping

About This Item

Dead centers are typically used for grinding and are also sometimes used in high-precision turning applications
Royal manufactures a wide range of standard dead centers to suit most applications, including: full, half, carbide-tipped, and extended-point models
All solid dead centers are made from ball bearing steel and are hardened to Rc 61-63 for wear resistance and durability
On carbide-tipped models, the carbide blank is brazed into a close-tolerance socket for maximum strength and rigidity
All Royal dead centers are ground to an angle of 60 Degree and guaranteed to +/–0.00005" TIR

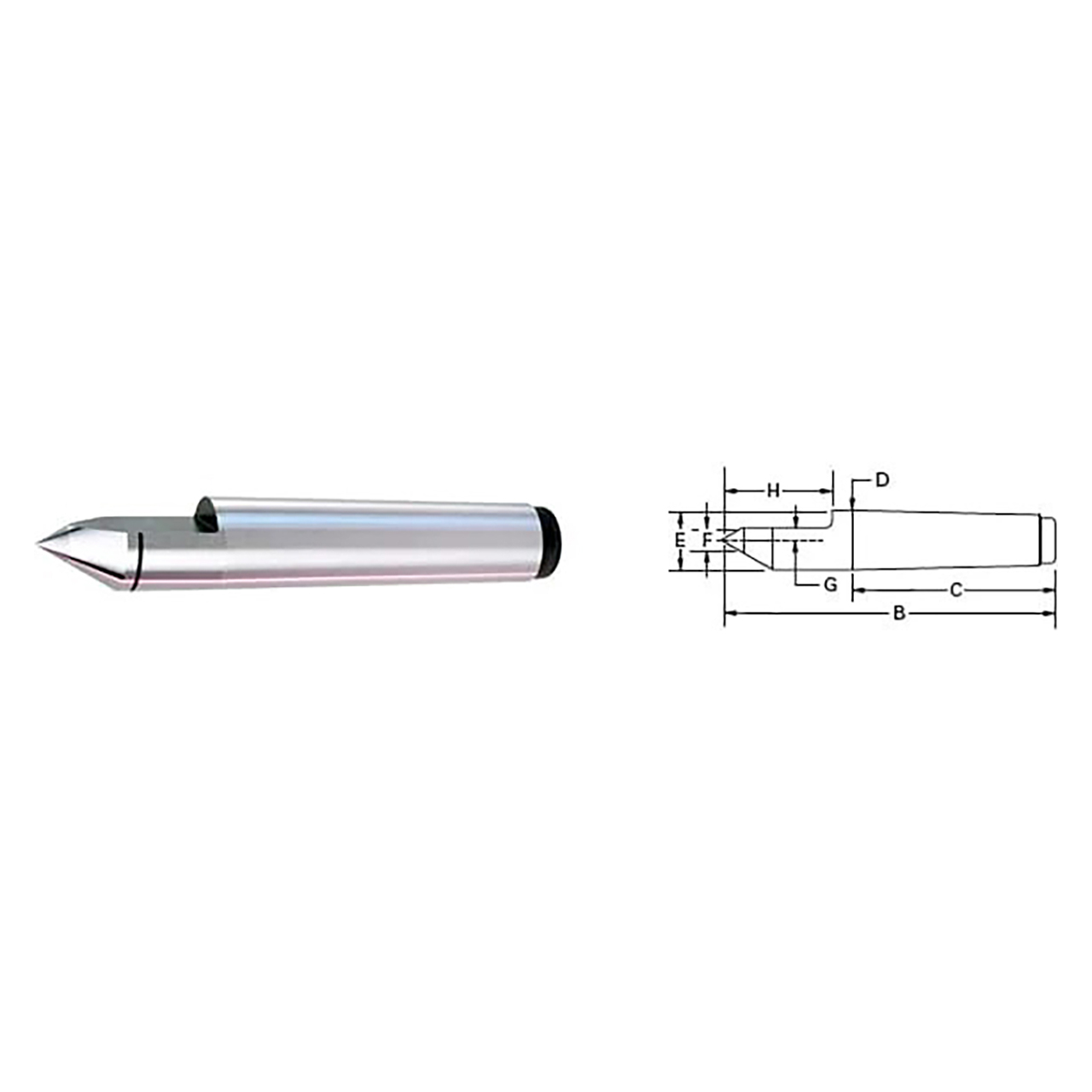

Product Specifications

Center Dimension A (Center Taper)	4 MT
Center Dimension B (Inch)	6.75
Center Dimension C (Inch)	4.06
Center Dimension D (Inch)	1.231
Center Dimension E (Inch)	1.231
Center Dimension F (Inch)	0.50
Center Dimension G (Inch)	0.25
Center Dimension H (Inch)	2.25
