- Dead centers are typically used for grinding and are also sometimes used in high-precision turning applications
- Royal manufactures a wide range of standard dead centers to suit most applications, including: full, half, carbide-tipped, and extended-point models
- All solid dead centers are made from ball bearing steel and are hardened to Rc 61-63 for wear resistance and durability
- On carbide-tipped models, the carbide blank is brazed into a close-tolerance socket for maximum strength and rigidity
- All Royal dead centers are ground to an angle of 60 Degree and guaranteed to +/–0.00005" TIR

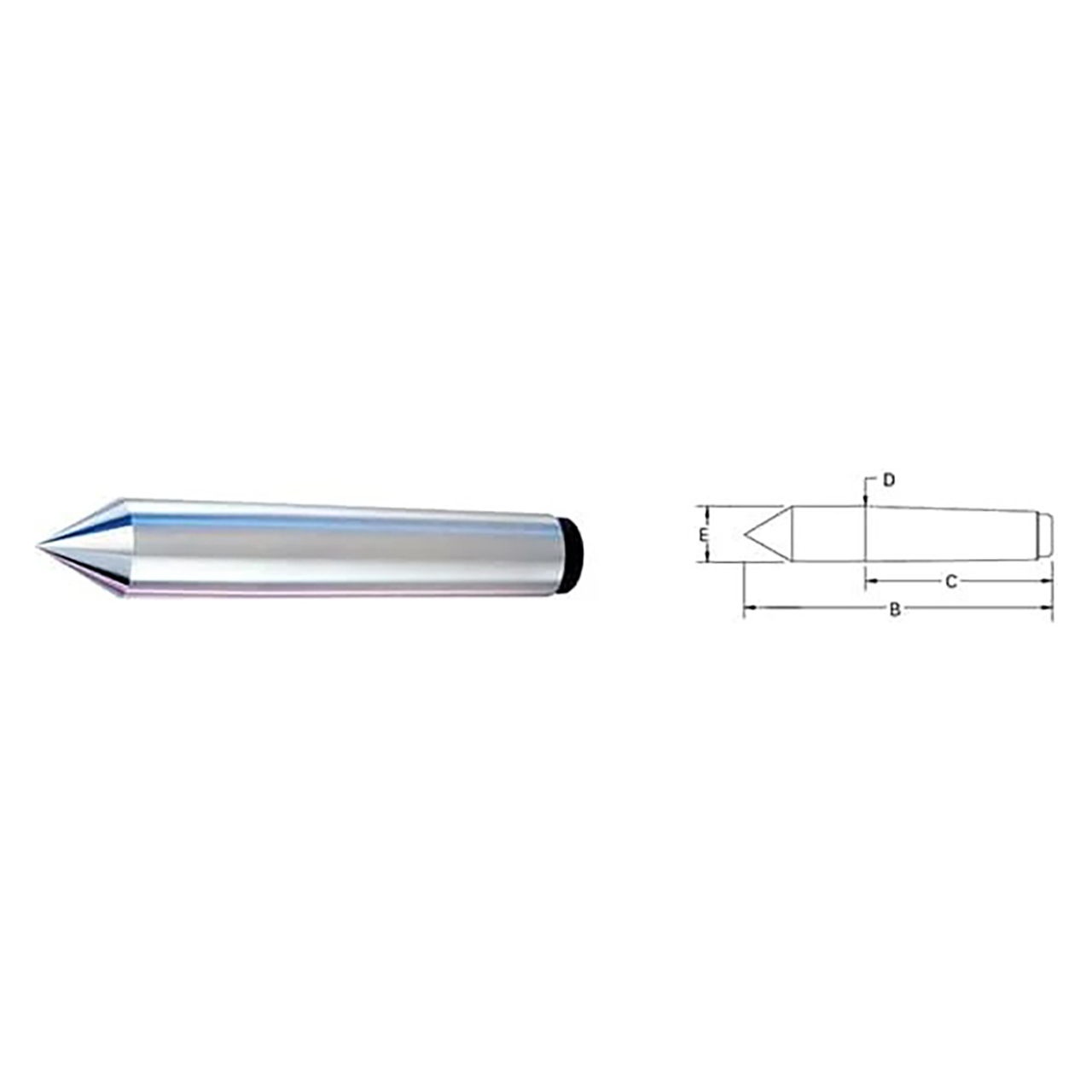

Product Specifications
| Center Dimension A (Center Taper) | 5 MT |
| Center Dimension B (Inch) | 8.50 |
| Center Dimension C (Inch) | 5.19 |
| Center Dimension D (Inch) | 1.748 |
| Center Dimension E (Inch) | 1.748 |
| Center Dimension F (Inch) | 0.63 |
| Center Dimension G (Inch) | 0.38 |
| Center Dimension H (Inch) | 2.75 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Royal Products
