- The Royal Quick-Change Tool System provides a fast method for changing tools on a Bridgeport-style mill – once the R8 body is installed in the machine spindle, tools can be changed in seconds
- One hand operation – simply depress the brass locking button and rotate collar to the locked-open position. When a new tool is inserted, it depresses a spring-loaded pin, snapping the collar back into the locked-closed position
- Very accurate – total system runout can be less than 0.0005" TIR under the right circumstances
- Short overhang (1 1/8") and two positive-drive keys enable many common milling and drilling operations to be easily performed

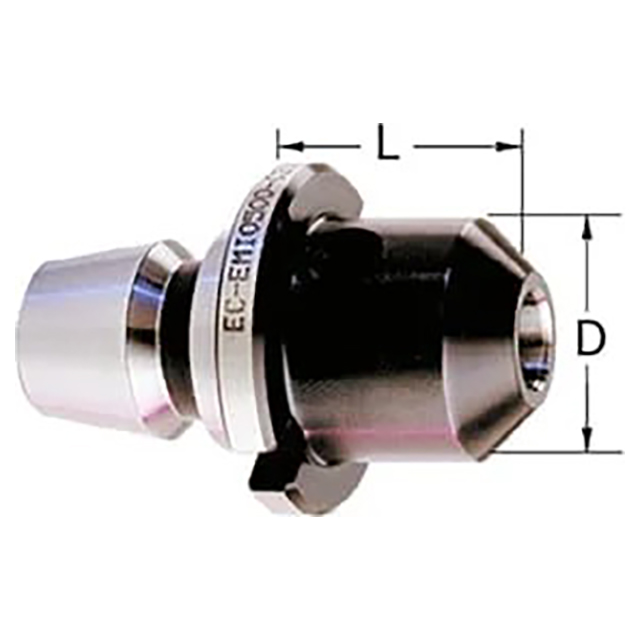

Product Specifications
| Bore Size (Inch) | 5/8" |
| Endmill Tool Holder Dimension "D" (Inch) | 1 9/16" |
| Endmill Tool Holder Dimension "L" (Inch) | 1 5/8" |
